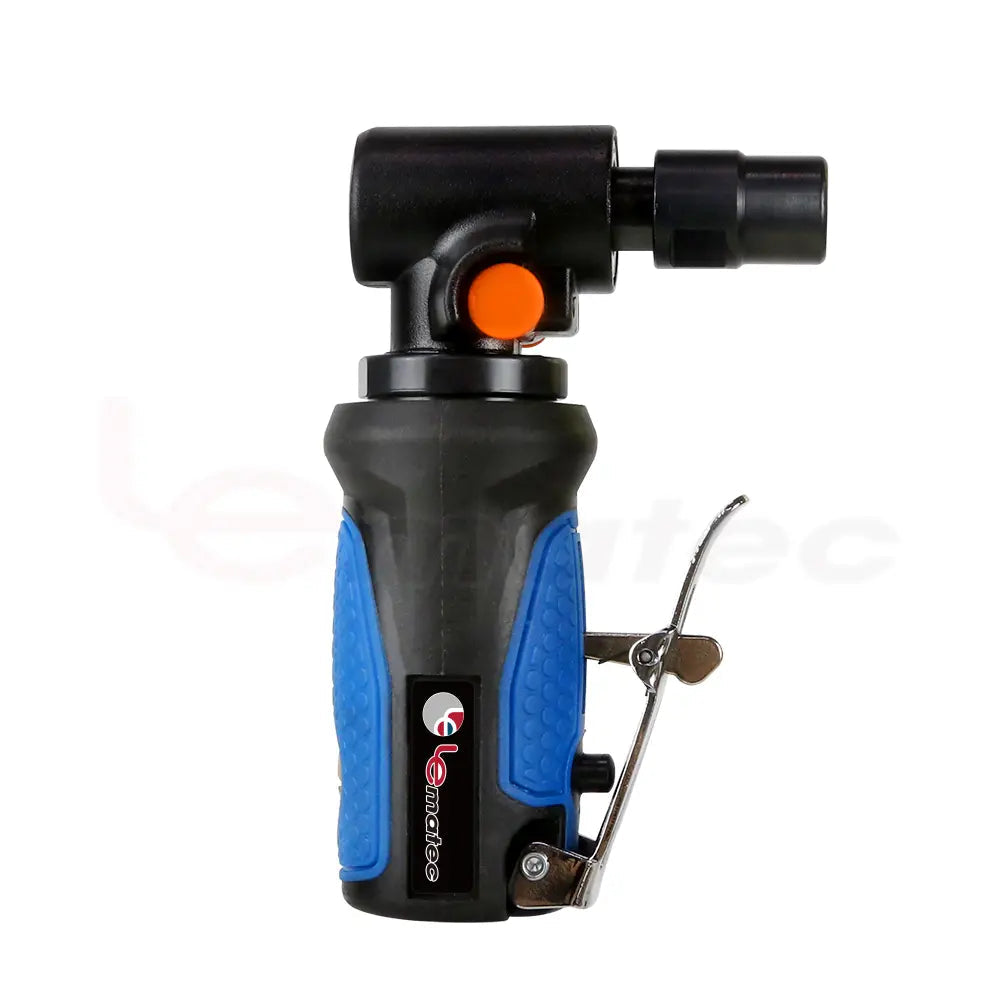

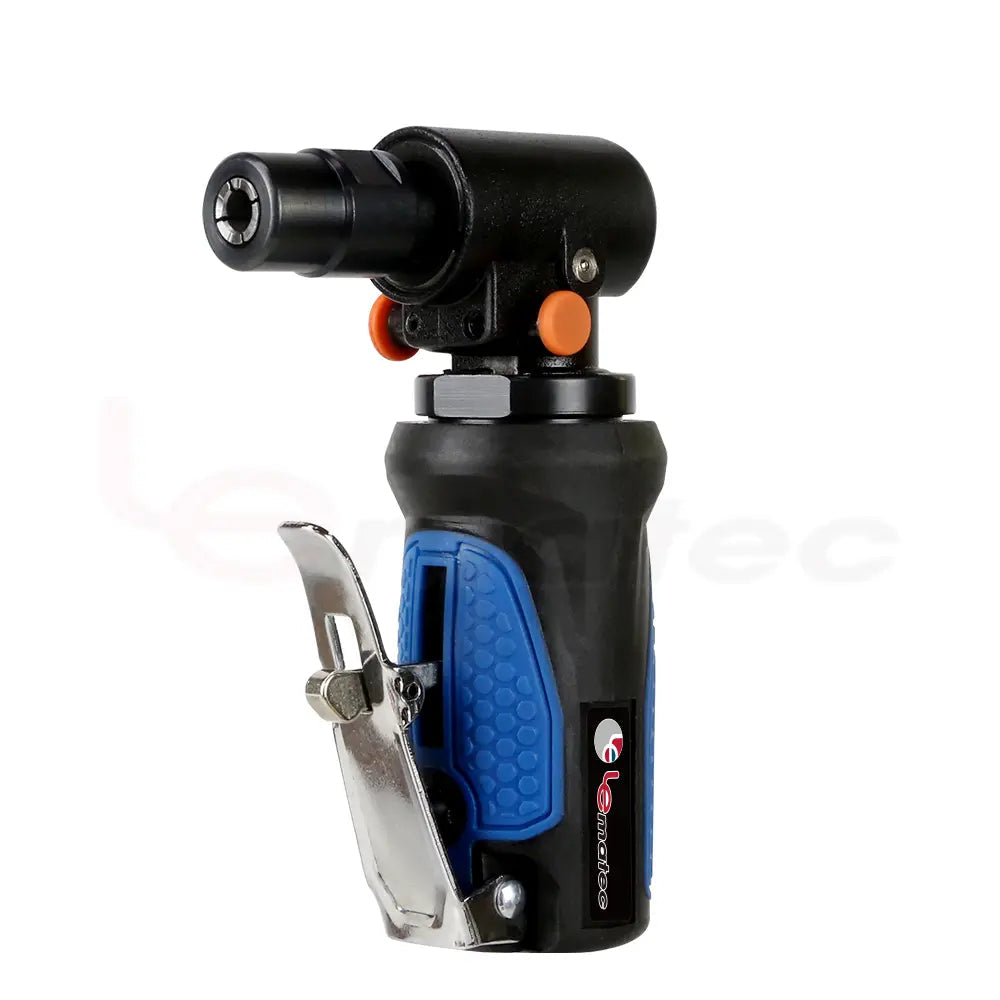

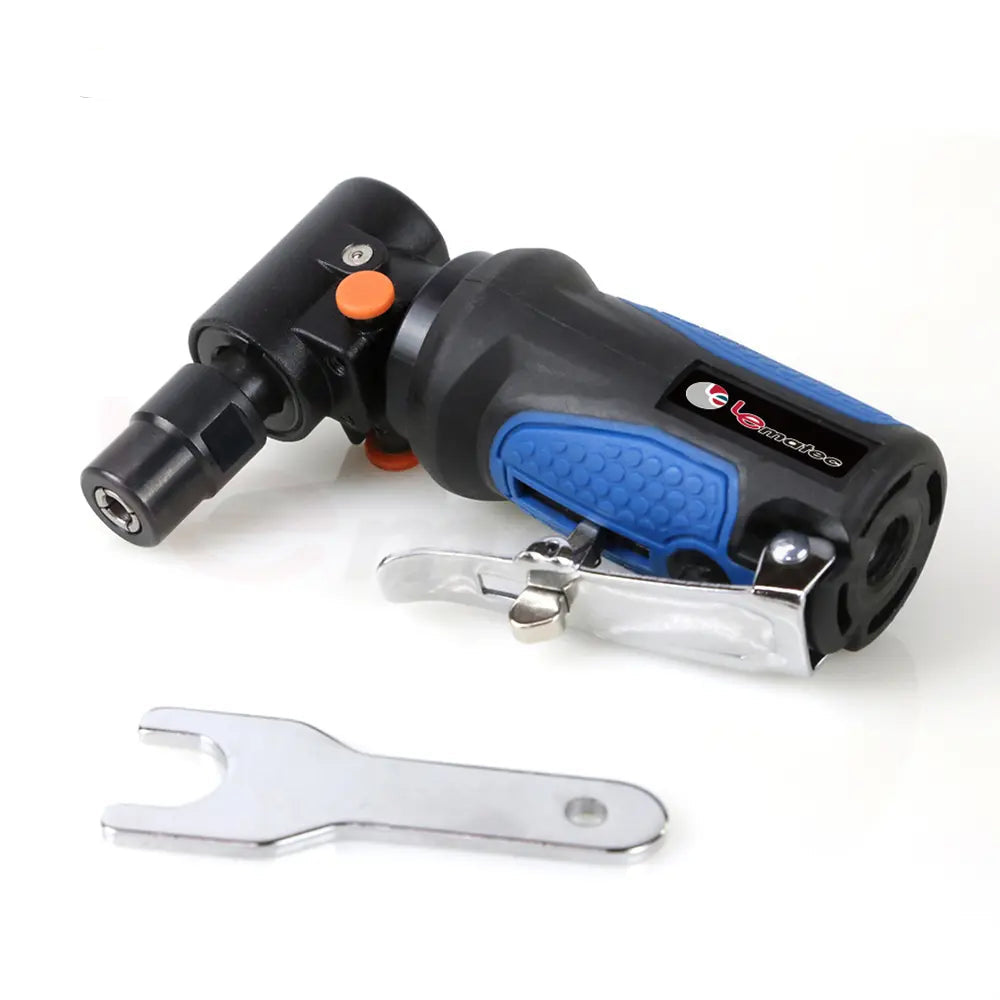

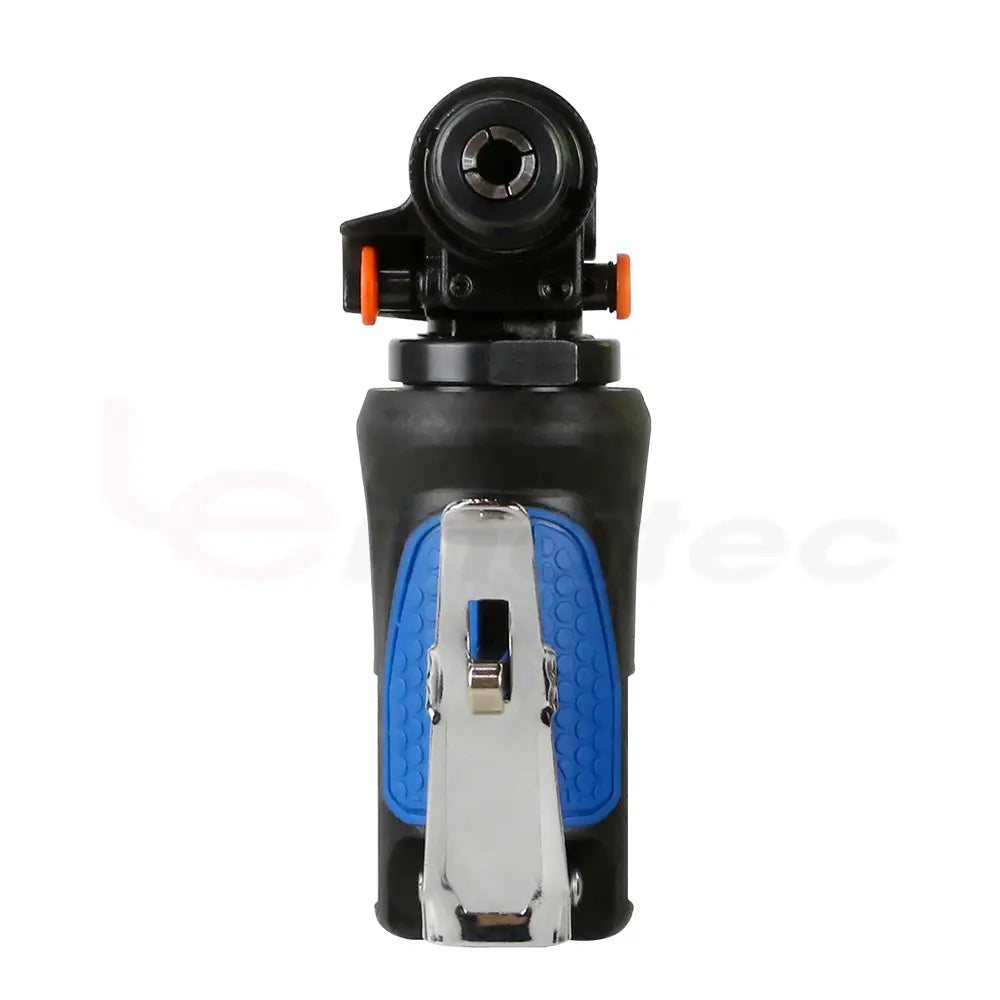

1/4" Mini Air Angle Die Grinder 90 degree type

1/4" Mini Air Angle Die Grinder 90 degree type

Key Features:

  • High-Speed Grinding: The LE-G1343L offers a free speed of 20,000 RPM, ensuring fast and efficient material removal, ideal for high-demand industrial environments.

  • Compact and Versatile: The 90-degree angle head design allows for flexible grinding in tight or confined areas, making it suitable for various industrial applications.

  • Durable Construction: This grinder's lightweight composite body is built for maneuverability and long-term use, reducing operator fatigue during extended use.

  • Enhanced Operator Comfort: The rubberized handle provides a secure and comfortable grip, while the safety trigger mechanism ensures better control and reduces the risk of accidental starts.

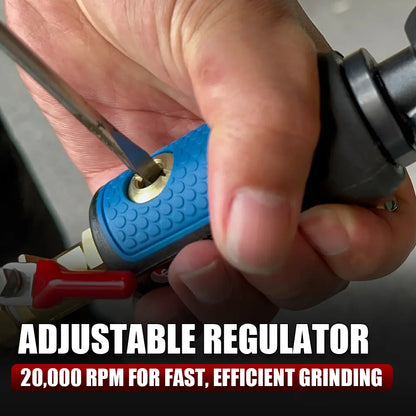

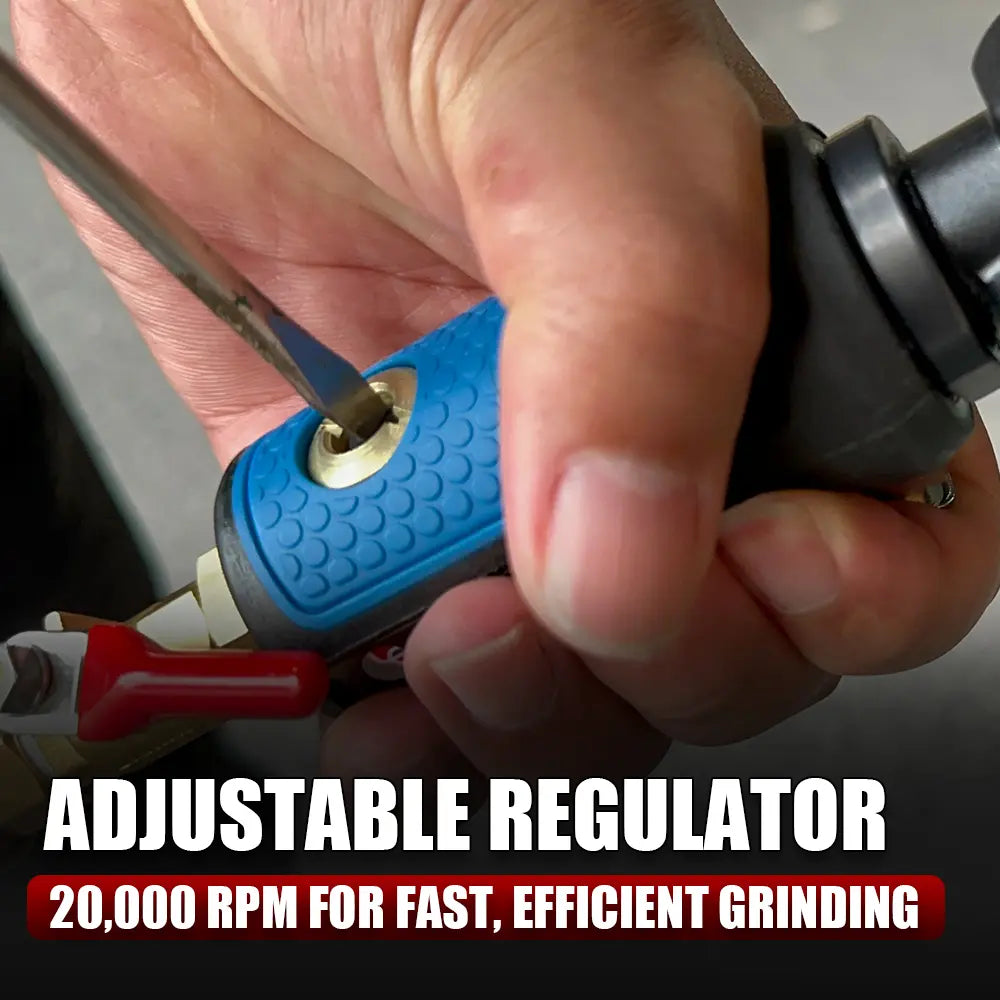

  • Adjustable Performance: An adjustable regulator allows precise control over speed and power, enabling customization based on specific job requirements.

Technical Specifications:

  • Model: LE-G1343L
  • Free Speed: 20,000 RPM
  • Power: 0.3 hp
  • Average Air Consumption: 4.5 SCFM (25% usage)
  • Sound Level: 89.03 dBA (pressure), 100.03 dBA (power)
  • Vibration: 4.30 m/s²
  • Collet Size: 1/4" (6mm) or 1/8" (3mm)
  • Exhaust: Front
  • Length: 124mm (4.88 inches)
  • Weight: 0.47 kg (1.03 lbs)
  • Air Pressure: 90 psi (6.3 kg/cm²)
  • Air Inlet: 1/4"
