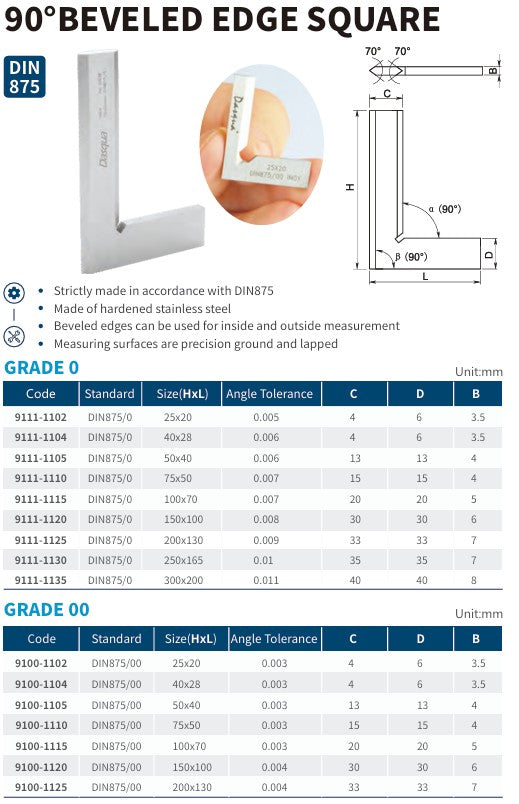

A precision 90‑degree beveled‑edge square built for layout, inspection, and machine‑shop accuracy work. The hardened stainless‑steel body provides long service life, and the satin‑chrome finish gives low‑glare readability on the reference faces. The beveled edges allow both inside and outside measurement, and all measuring surfaces are precision‑ground and lapped for smooth, repeatable contact. Manufactured strictly to DIN 875 standards, available in both Grade 0 and Grade 00 for workshop or inspection‑room accuracy.
Features and Construction • Hardened stainless‑steel body for durability • Satin‑chrome finish for clear, glare‑free reading • Precision‑ground and lapped measuring surfaces • Beveled edges for inside and outside measurement • Manufactured to DIN 875 accuracy standards • Available in Grade 0 (workshop) and Grade 00 (inspection)
Specifications • Angle: 90° • Sizes available: 25×20 mm up to 300×200 mm • Accuracy grades: DIN875/0 and DIN875/00
