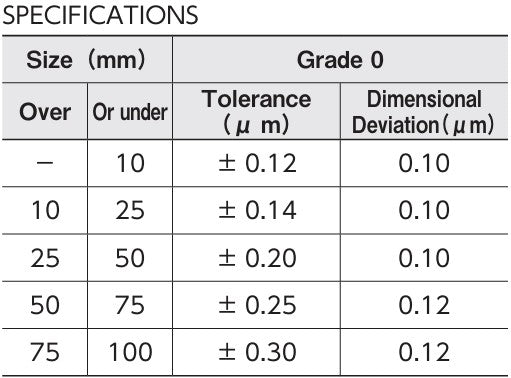

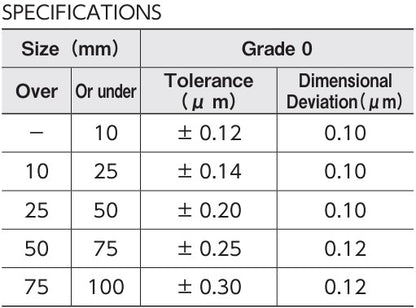

USE ●As reference standard and for general measurement work ●As spacer and prefinished sub-assembly components MATERIAL ●Ceramic （Zirconia） FEATURES ● Abrasion resistant ● Free from rust and corrosion, and easy maintenance ● Ceramic material is less susceptible to abrasion and aged deterioration than steel ● Non-magnetic ●Conforms to JIS （Grade 0） ●Provided with inspection report SPECIFICATIONS ● Section size: 10mm or under: 30（0〜−0.3）×9（−0.05〜−0.2）mm Over 10mm and less than 100mm: 35（0〜−0.3）×9（−0.05〜−0.2）mm ● Coefficient of thermal expansion: （9.5±1）×10-6／K ●Young's modulus: Approx.206GPa ●Poisson's raito: 0.3 ※Calibration and custom size production are NOT available
