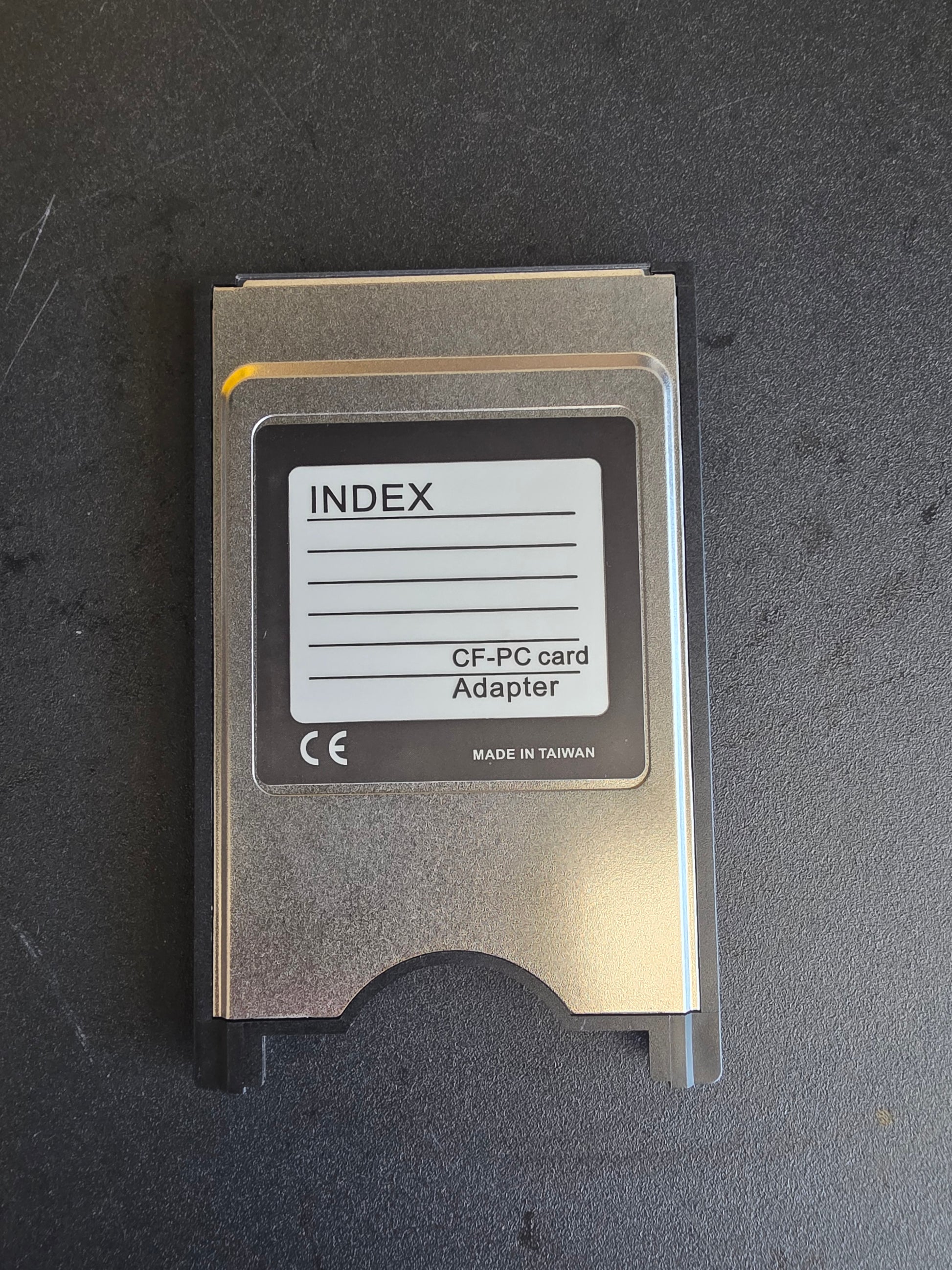

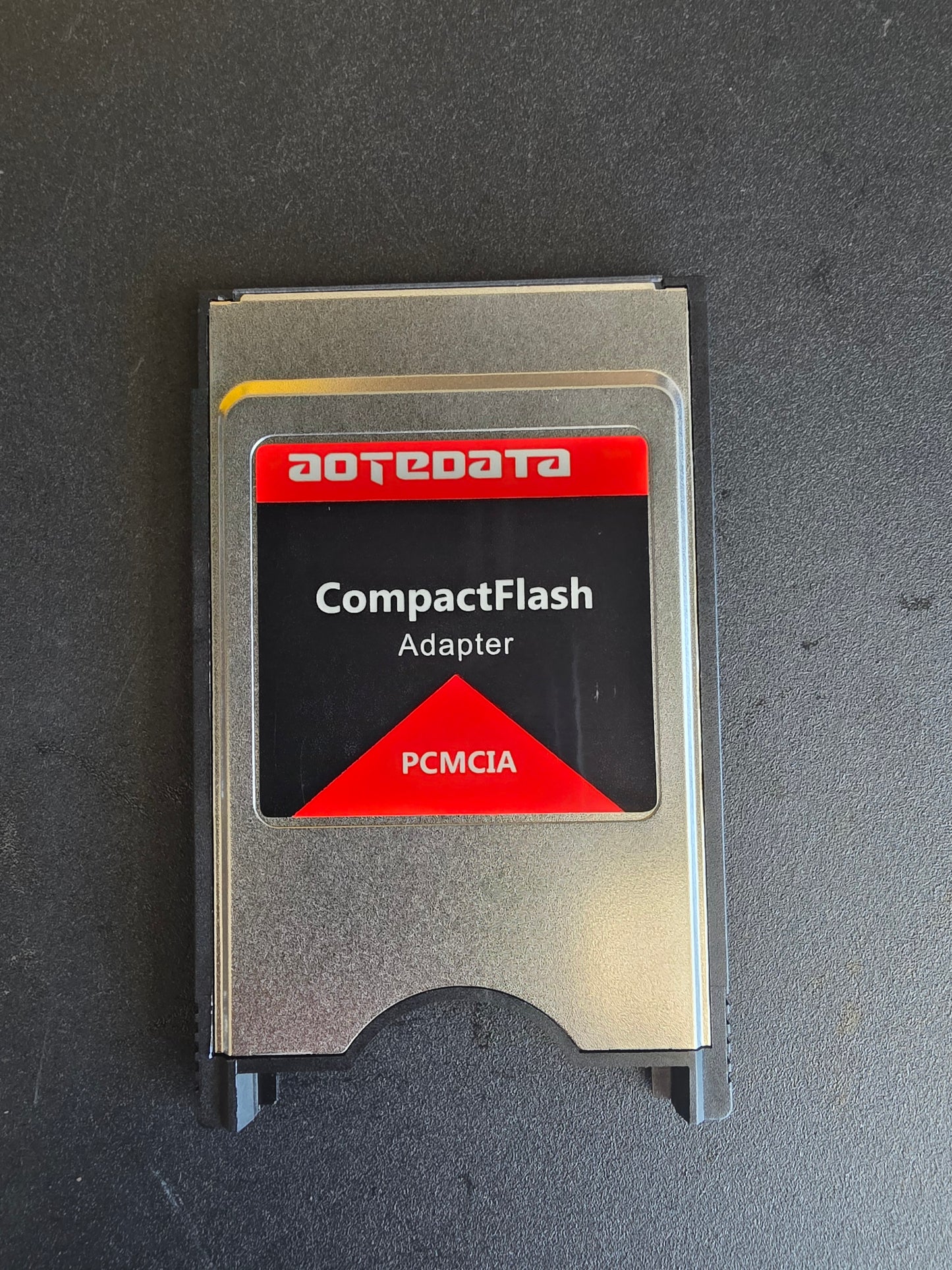

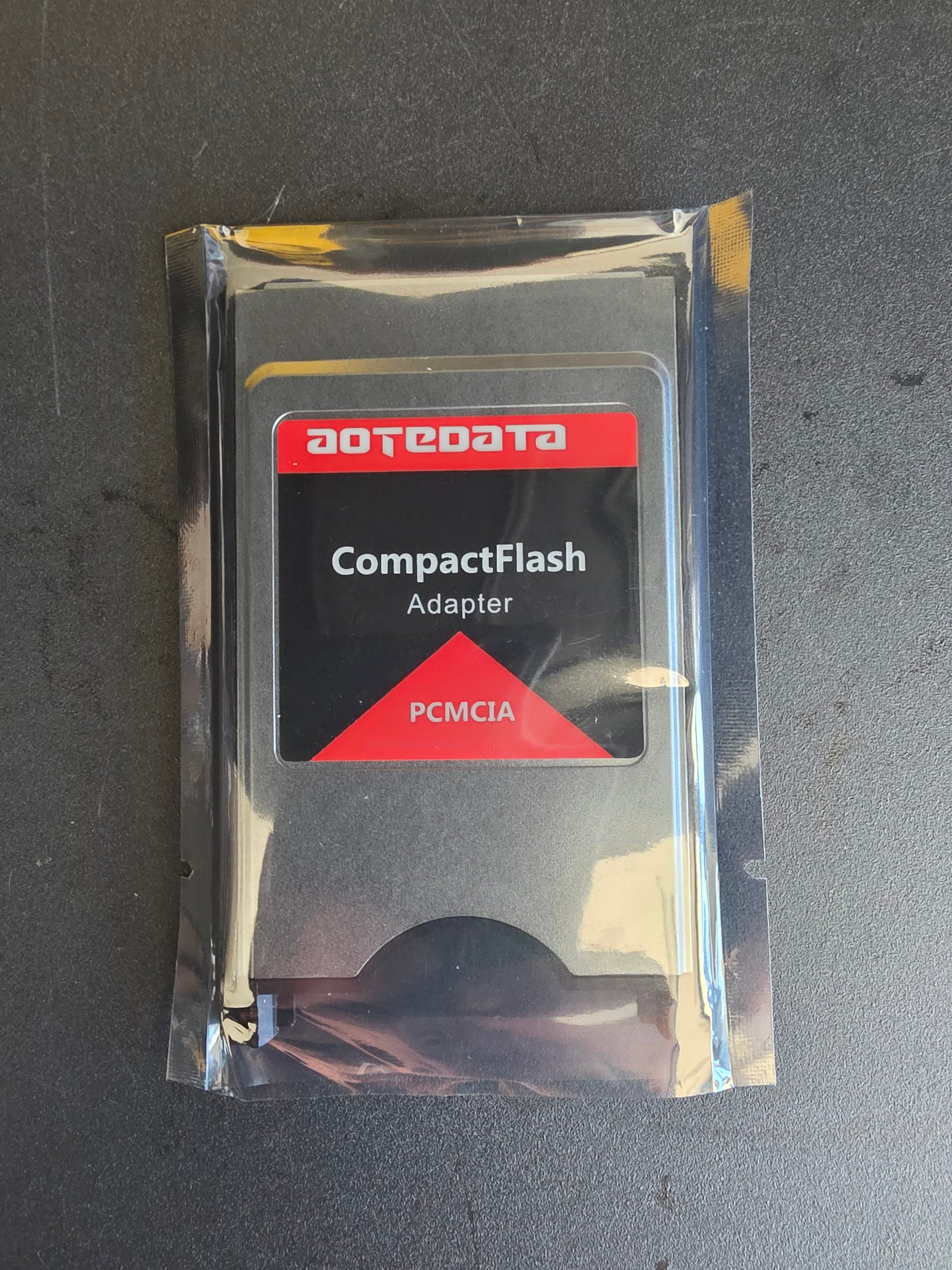

Compact Flash to PCMCIA Adaptor

Reliable adaptor for transferring programs to older CNC machines equipped with PCMCIA card slots. Converts standard Compact Flash cards to PCMCIA format for easy file access and program loading.

Specifications:

• Interface: 50-pin Compact Flash to 68-pin PCMCIA
• Compatible card types: Type I Compact Flash (≤128MB recommended)
• Dimensions: 86mm × 54mm × 5mm
• Operating voltage: 3.3V–5V
• Format: FAT file system (FAT16 preferred)

Compatibility:

• Compatible with known CNC controls from Fanuc, Mitsubishi, Makino, SNK, and others
• Recommended for machines from year 2000 onward with PCMCIA slots
• Works in place of ATA cards for program upload/download
• Best results with 128MB CF cards; larger cards may not be recognized

Simple, effective, and built for machinists who’d rather skip the RS232 cable dance. Just plug, load, and cut.
