DIGITAL MEASURING MICROSCOPE

Use

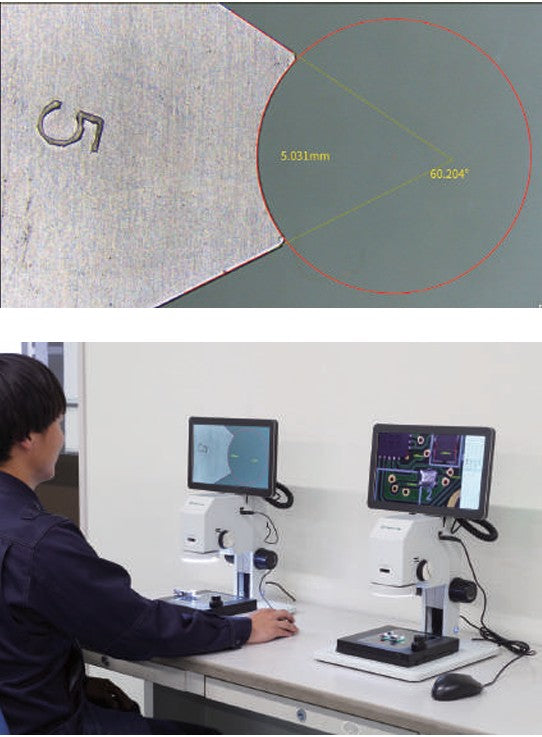

●For inspecting cracks, surface degradation, etc., in mechanical parts made of metal, fiber, resin, etc.
●For measuring hard-to-reach areas on images that are difficult to measure with hand tools
MATERIAL
●Body: PVC
●Column and Base: Aluminum
FEATURES

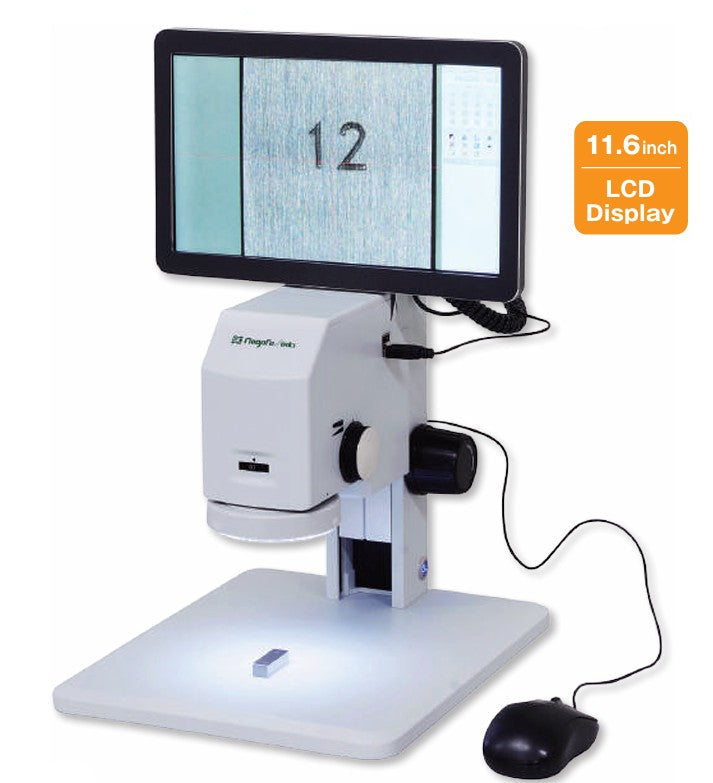

●A digital microscope with an integrated optical system and monitor

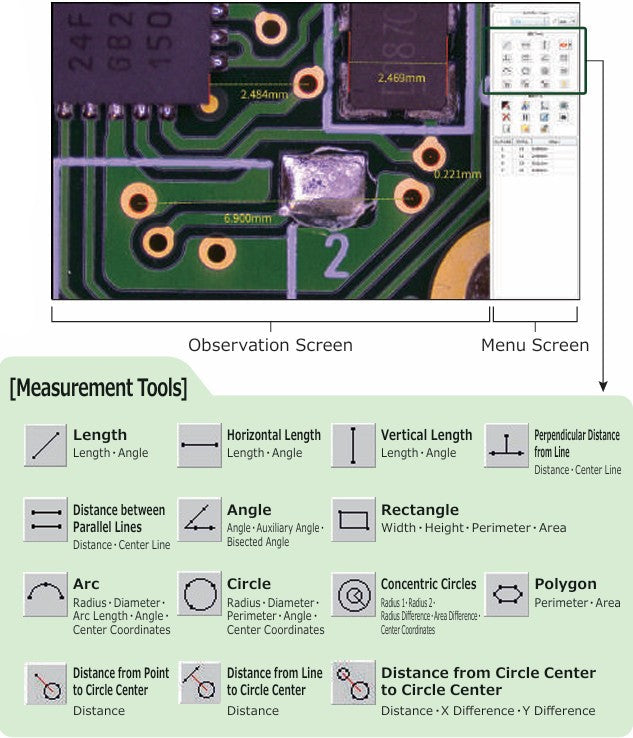

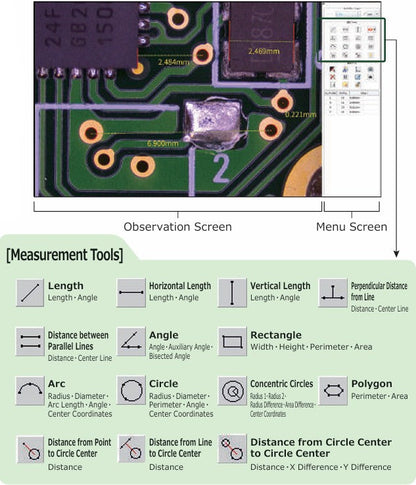

● Various measurements such as length, parallel/ vertical distance, circle
dimensions, and angles can be performed on images
●By connecting a USB flash memory, image and measurement data can be exported
●Comes with standard dimmable white LED ring lighting
●The accuracy of the scale can be checked using a separately sold calibration slide
SPECIFICATIONS
●Total magnification: 14 to 98x
●Objective lens: 0.7x, 1x, 1.5x, 2x, 2.5x, 3x, 4x, 5x
●Field of view: Approx. 16 x 11 to 2.2 x 1.5mm (with menu display)
●Guaranteed accuracy at shipment:  0.7x: ±0.05mm
4.0x, 5.0x: ±0.03mm
(For higher accuracy, calibration can be performed with an optional calibration slide)
●Working distance: 100mm
●Maximum observable Height: Approx. 60mm
●Focus adjustment: Main body vert. position control
●Stand: Rack and pinion system
●Image sensor: 1/3 CMOS
●Pixel count: 1980 x 1080 pixels, approx. 2 million pixels
●Frame rate: 25, 30, 50, 60 frames per second (selectable)
●Interface: USB 2.0 x 2
●Illumination: White LED x 144
● Main functions:  Image RGB, contrast adjustment, still image storage,
measurement (length, parallel/vertical distance, circle
dimensions, angle, etc.) and measurement data storage
POWER SUPPLY
●Included AC Adapter
ACCESSORIES
●AC Adapter (AC100-240V), Mouse, Protective cover
