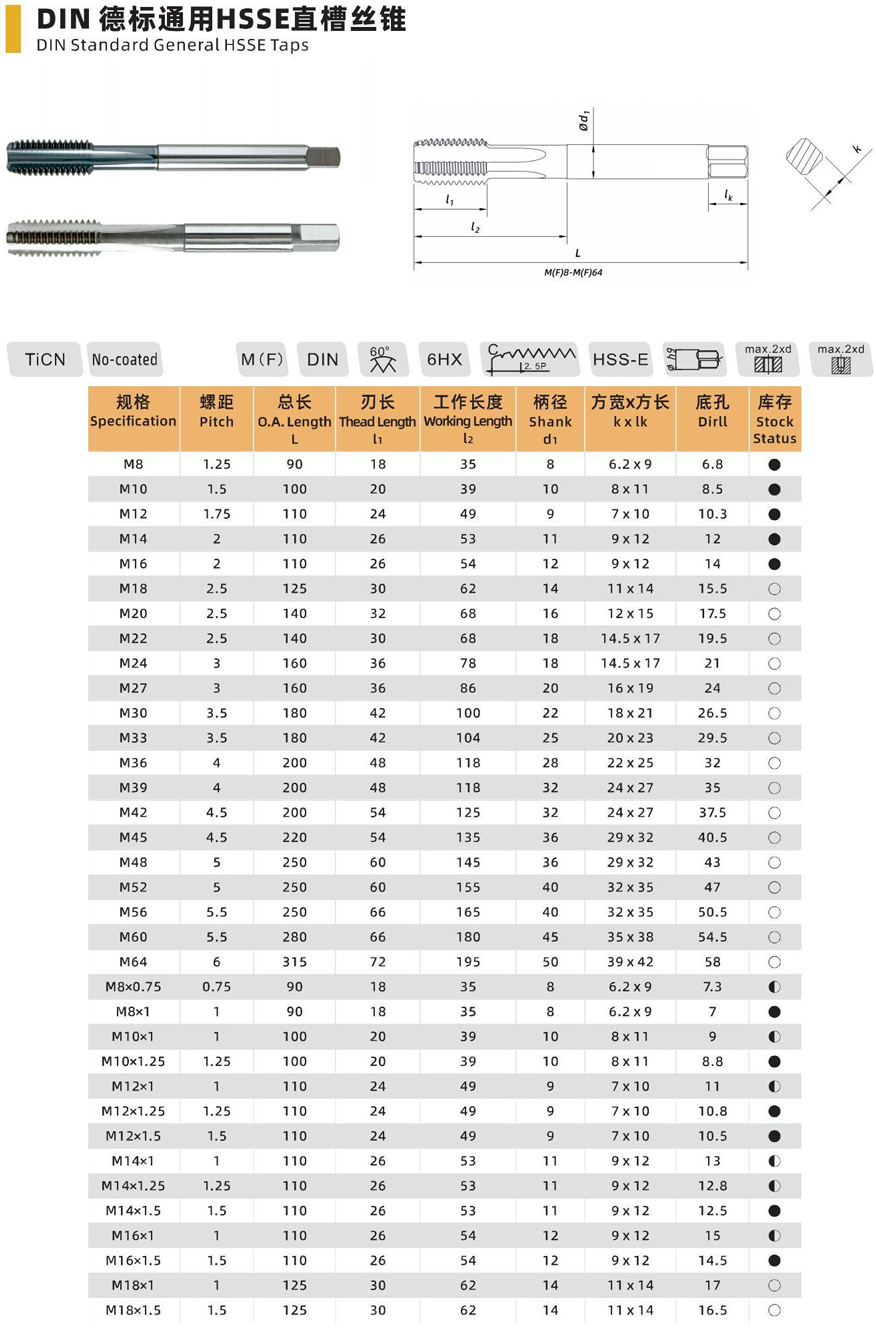

DIN Standard General HSS-E Straight Flute Tap - M8 to M64x3

DIN Standard General HSS-E Straight Flute Tap

High-speed steel extra (HSS-E) straight flute taps manufactured to DIN standards for medium to large metric threading applications. Available in both TiCN-coated and uncoated versions. Straight flute design for general purpose threading.

Specifications:

• Material: HSS-E (High-Speed Steel Extra)
• Standard: DIN (German Institute for Standardization)
• Type: Straight Flute
• Coating Options: TiCN or No-coated
• Thread Standard: Metric M (F)
• Point Angle: 60°
• Shank Type: 6HX (Hexagonal)

Available Sizes:

M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M39, M42, M45, M48, M52, M56, M60, M64, M8x0.5, M8x0.75, M8x1, M10x0.5, M10x0.75, M10x1, M10x1.25, M12x1, M12x1.25, M12x1.5, M14x1, M14x1.25, M14x1.5, M16x1, M16x1.5, M18x1, M18x1.5, M18x2, M18x2.5

Technical Notes:

• Straight flute design for general purpose threading
• HSS-E construction provides heat resistance and durability
• TiCN coating option reduces friction and extends tool life
• 6HX hexagonal shank for secure tool holding
• Conforms to DIN dimensional standards
• Comprehensive range from M8 to M64 standard pitch, plus M8 to M18 fine pitch options

Applications:

Suitable for threading operations in steel, stainless steel, cast iron, and non-ferrous metals. General purpose hand and machine tapping applications.
