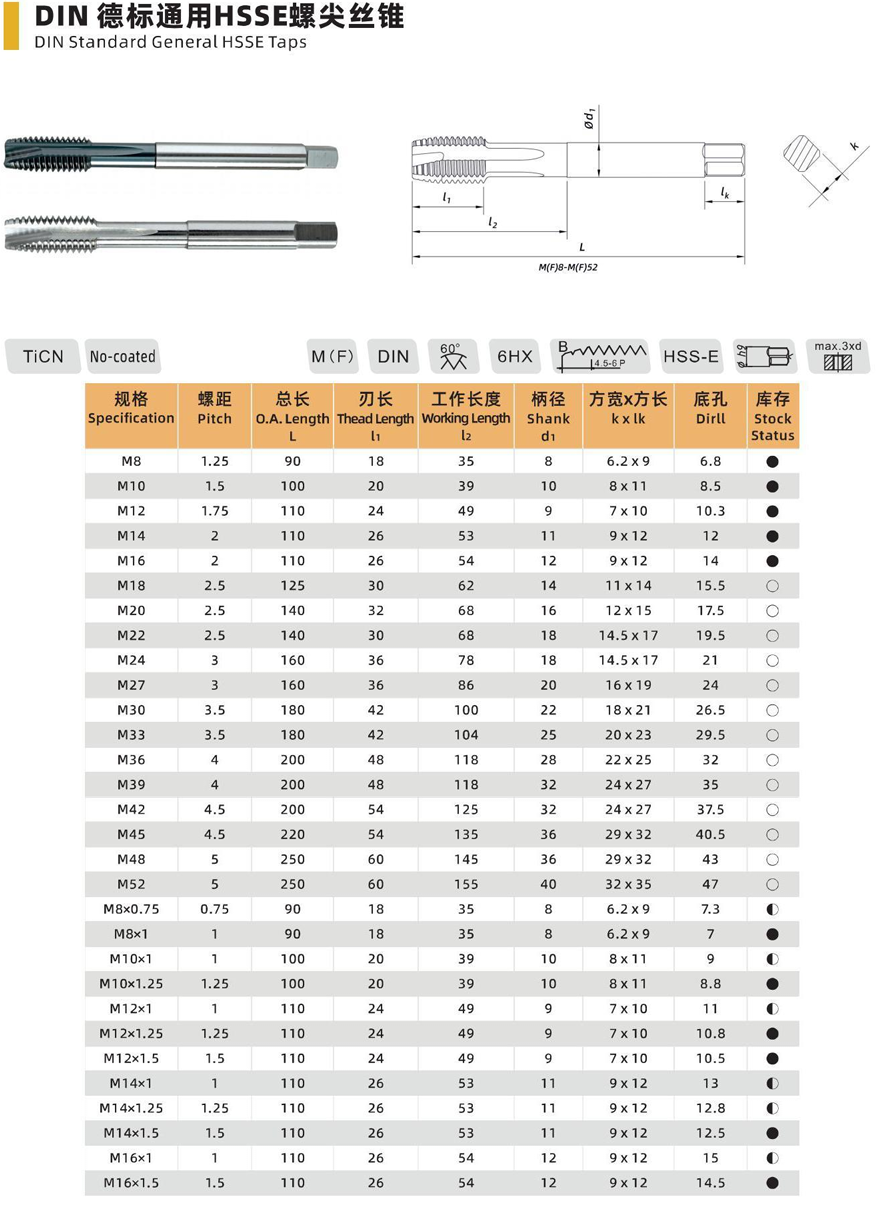

DIN Standard General HSS-E Spiral Point Tap - M8 to M52x3

DIN Standard General HSS-E Spiral Point Tap

High-speed steel extra (HSS-E) spiral point taps manufactured to DIN standards for medium to large metric threading applications. Spiral point geometry directs chips forward during threading operations.

Specifications:

• Material: HSS-E (High-Speed Steel Extra)
• Standard: DIN (German Institute for Standardization)
• Type: Spiral Point (Gun Tap)
• Coating: TiCN (Titanium Carbonitride)
• Thread Standard: Metric M (F)
• Point Angle: 60°
• Shank Type: 6HX (Hexagonal)

Available Sizes:

M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M39, M42, M45, M48, M52, M8x0.5, M8x0.75, M8x1, M10x0.5, M10x0.75, M10x1, M10x1.25, M12x1, M12x1.25, M12x1.5, M14x1, M14x1.25, M14x1.5, M16x1, M16x1.5, M18x1, M18x1.5, M18x2, M20x1, M20x1.5, M20x2, M22x1, M22x1.5, M22x2, M24x1.5, M24x2, M27x1.5, M27x2, M30x1.5, M30x2, M33x1.5, M33x2, M36x2, M36x3, M39x2, M39x3, M42x2, M42x3, M45x2, M45x3, M48x2, M48x3, M52x2, M52x3

Technical Notes:

• Spiral point design pushes chips ahead of the tap, suitable for through-hole applications
• HSS-E construction provides heat resistance and durability
• TiCN coating reduces friction and extends tool life
• 6HX hexagonal shank for secure tool holding
• Conforms to DIN dimensional standards
• Comprehensive range includes both standard and fine pitch options

Applications:

Suitable for threading operations in steel, stainless steel, cast iron, and non-ferrous metals. Recommended for through-hole threading where forward chip evacuation is required.
