DIN Standard General HSS-E Form Tap - M8 to M20x2.5
DIN Standard General HSS-E Form Tap - M8 to M20x2.5
DIN Standard General HSS-E Form Tap
High-speed steel extra (HSS-E) thread forming taps manufactured to DIN standards for medium metric threading applications. TiCN-coated for extended tool life. Form taps create threads by displacing material rather than cutting, producing stronger threads with no chips.
Catalog Reference: ECL TAPS A24
Specifications:
- Material: HSS-E (High-Speed Steel Extra)
- Standard: DIN (German Institute for Standardization)
- Type: Form Tap (Thread Forming)
- Coating: TiCN (Titanium Carbonitride)
- Thread Standard: Metric M (F)
- Point Angle: 60°
- Shank Type: 6HX (Hexagonal)
- Chamfer: max 3xd
Available Sizes:
M8, M10, M12, M14, M16, M18, M20, M8x0.75, M8x1, M10x1, M10x1.25, M12x1, M12x1.25, M12x1.5, M14x1, M14x1.25, M14x1.5, M16x1, M16x1.5, M18x1, M18x1.5, M18x2, M20x1, M20x1.5, M20x2

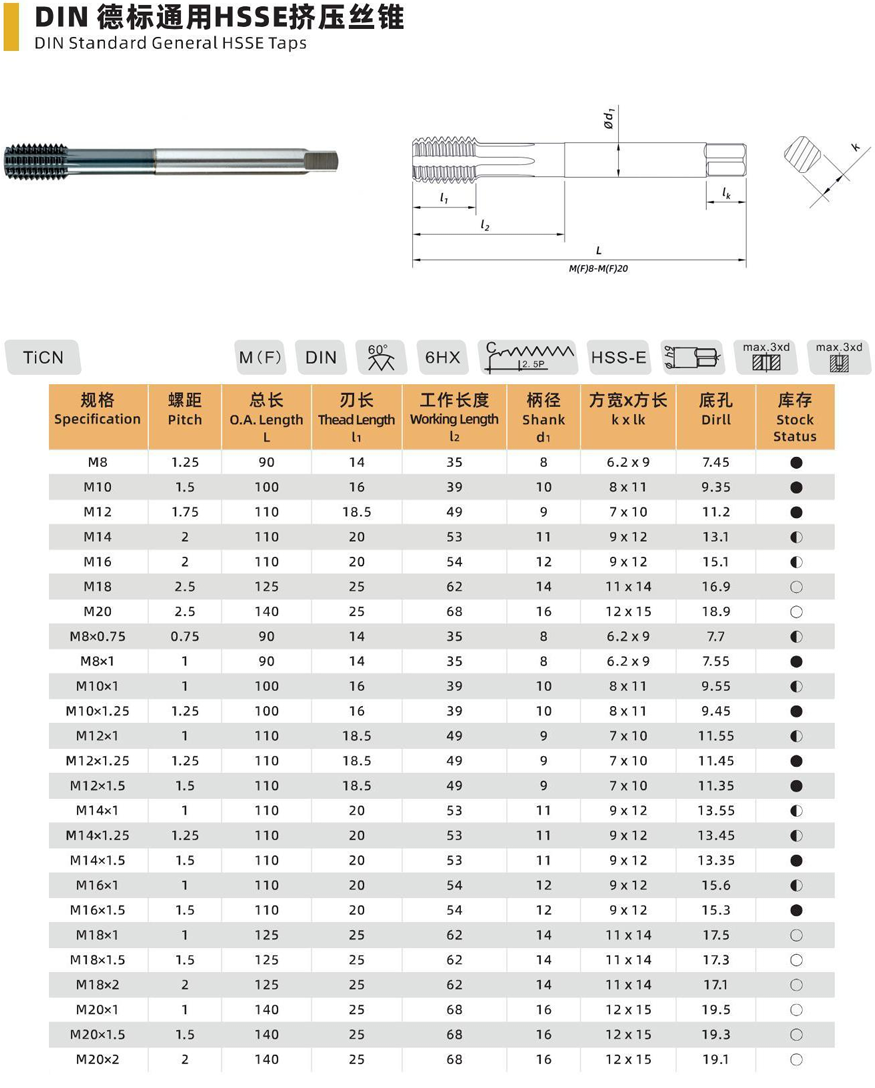

Size Chart:
| Size | Pitch | O.A. Length (L) | Thread Length (l₁) | Working Length (l₂) | Shank ø (d₁) | Square Size (k×lk) | Drill ø |
|---|---|---|---|---|---|---|---|
| M8 | 1.25 | 90 | 14 | 35 | 8 | 6.2×9 | 7.45 |
| M10 | 1.5 | 100 | 16 | 39 | 10 | 8×11 | 9.35 |
| M12 | 1.75 | 110 | 18.5 | 49 | 9 | 7×10 | 11.2 |
| M14 | 2 | 110 | 20 | 53 | 11 | 9×12 | 13.1 |
| M16 | 2 | 110 | 20 | 54 | 12 | 9×12 | 15.1 |
| M18 | 2.5 | 125 | 25 | 62 | 14 | 11×14 | 16.9 |
| M20 | 2.5 | 140 | 25 | 68 | 16 | 12×15 | 18.9 |
| M8×0.75 | 0.75 | 90 | 14 | 35 | 8 | 6.2×9 | 7.7 |
| M8×1 | 1 | 90 | 14 | 35 | 8 | 6.2×9 | 7.55 |
| M10×1 | 1 | 100 | 16 | 39 | 10 | 8×11 | 9.55 |
| M10×1.25 | 1.25 | 100 | 16 | 39 | 10 | 8×11 | 9.45 |
| M12×1 | 1 | 110 | 18.5 | 49 | 9 | 7×10 | 11.55 |
| M12×1.25 | 1.25 | 110 | 18.5 | 49 | 9 | 7×10 | 11.45 |
| M12×1.5 | 1.5 | 110 | 18.5 | 49 | 9 | 7×10 | 11.35 |
| M14×1 | 1 | 110 | 20 | 53 | 11 | 9×12 | 13.55 |
| M14×1.25 | 1.25 | 110 | 20 | 53 | 11 | 9×12 | 13.45 |
| M14×1.5 | 1.5 | 110 | 20 | 53 | 11 | 9×12 | 13.35 |
| M16×1 | 1 | 110 | 20 | 54 | 12 | 9×12 | 15.6 |
| M16×1.5 | 1.5 | 110 | 20 | 54 | 12 | 9×12 | 15.3 |
| M18×1 | 1 | 125 | 25 | 62 | 14 | 11×14 | 17.5 |
| M18×1.5 | 1.5 | 125 | 25 | 62 | 14 | 11×14 | 17.3 |
| M18×2 | 2 | 125 | 25 | 62 | 14 | 11×14 | 17.1 |
| M20×1 | 1 | 140 | 25 | 68 | 16 | 12×15 | 19.5 |
| M20×1.5 | 1.5 | 140 | 25 | 68 | 16 | 12×15 | 19.3 |
| M20×2 | 2 | 140 | 25 | 68 | 16 | 12×15 | 19.1 |
Technical Notes:
- Form tap design displaces material to create threads without producing chips
- Produces stronger threads with improved surface finish compared to cutting taps
- Ideal for ductile materials that can be cold-formed
- HSS-E construction provides heat resistance and durability
- TiCN coating reduces friction and extends tool life
- 6HX hexagonal shank for secure tool holding
- Conforms to DIN dimensional standards
- Max 3xd chamfer
- Comprehensive range includes both standard and fine pitch options
Applications:
Suitable for thread forming in ductile materials including aluminum, copper, brass, mild steel, and other materials with good plasticity. Produces chip-free threading ideal for blind holes and applications where chip contamination must be avoided. Not suitable for brittle materials like cast iron.
