DIN Standard General HSS-E Straight Flute Tap - M3 to M6x0.75
DIN Standard General HSS-E Straight Flute Tap - M3 to M6x0.75
DIN Standard General HSS-E Straight Flute Tap
High-speed steel extra (HSS-E) straight flute taps manufactured to DIN standards. Available in both TiCN-coated and uncoated versions. Straight flute design for general purpose threading.
Specifications:
- Material: HSS-E (High-Speed Steel Extra)
- Standard: DIN (German Institute for Standardization)
- Type: Straight Flute
- Coating Options: TiCN or No-coated
- Thread Standard: Metric M (F)
- Point Angle: 60°
- Shank Type: 6HX (Hexagonal)
- Chamfer: max 2xd
Available Sizes:
M3, M4, M5, M6, M3x0.35, M4x0.5, M5x0.5, M6x0.5, M6x0.75
Size Chart:

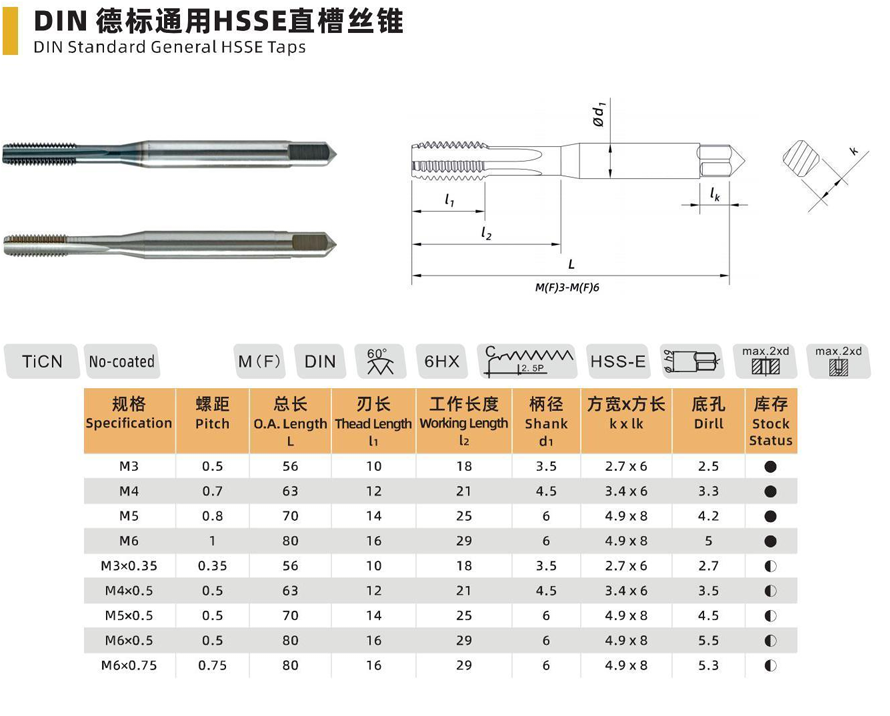

| Size | Pitch | O.A. Length (L) | Thread Length (l₁) | Working Length (l₂) | Shank ø (d₁) | Square Size (k×lk) | Drill ø |
|---|---|---|---|---|---|---|---|
| M3 | 0.5 | 56 | 10 | 18 | 3.5 | 2.7×6 | 2.5 |
| M4 | 0.7 | 63 | 12 | 21 | 4.5 | 3.4×6 | 3.3 |
| M5 | 0.8 | 70 | 14 | 25 | 6 | 4.9×8 | 4.2 |
| M6 | 1 | 80 | 16 | 29 | 6 | 4.9×8 | 5 |
| M3×0.35 | 0.35 | 56 | 10 | 18 | 3.5 | 2.7×6 | 2.7 |
| M4×0.5 | 0.5 | 63 | 12 | 21 | 4.5 | 3.4×6 | 3.5 |
| M5×0.5 | 0.5 | 70 | 14 | 25 | 6 | 4.9×8 | 4.5 |
| M6×0.5 | 0.5 | 80 | 16 | 29 | 6 | 4.9×8 | 5.5 |
| M6×0.75 | 0.75 | 80 | 16 | 29 | 6 | 4.9×8 | 5.3 |
Technical Notes:
- Straight flute design for general purpose threading
- HSS-E construction provides heat resistance and durability
- TiCN coating option reduces friction and extends tool life
- 6HX hexagonal shank for secure tool holding
- Conforms to DIN dimensional standards
- Max 2xd chamfer for general purpose applications
Applications:
Suitable for threading operations in steel, stainless steel, cast iron, and non-ferrous metals. General purpose hand and machine tapping applications.
