DIN Standard General HSS-E Form Tap - M3 to M6x0.75
DIN Standard General HSS-E Form Tap - M3 to M6x0.75
DIN Standard General HSS-E Form Tap
High-speed steel extra (HSS-E) thread forming taps manufactured to DIN standards. TiCN-coated for extended tool life. Form taps create threads by displacing material rather than cutting, producing stronger threads with no chips.
Specifications:
- Material: HSS-E (High-Speed Steel Extra)
- Standard: DIN (German Institute for Standardization)
- Type: Form Tap (Thread Forming)
- Coating: TiCN (Titanium Carbonitride)
- Thread Standard: Metric M (F)
- Point Angle: 60°
- Shank Type: 6HX (Hexagonal)
- Chamfer: max 3xd
Available Sizes:
M3, M4, M5, M6, M3x0.35, M4x0.5, M5x0.5, M6x0.5, M6x0.75

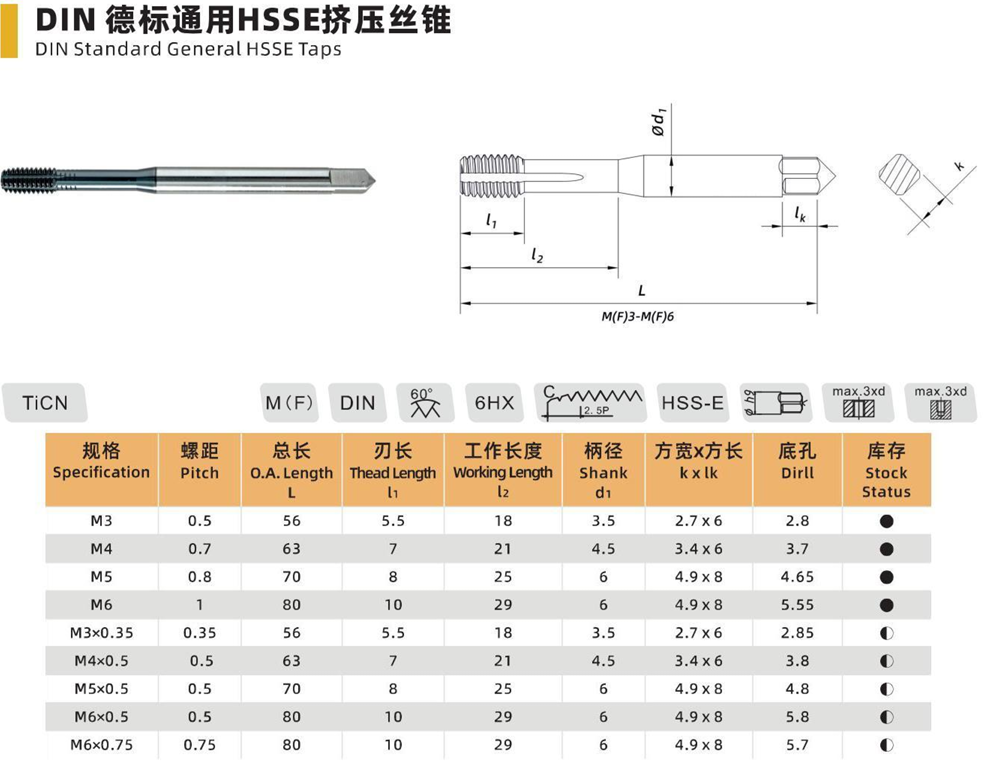

Size Chart:
| Size | Pitch | O.A. Length (L) | Thread Length (l₁) | Working Length (l₂) | Shank ø (d₁) | Square Size (k×lk) | Drill ø |
|---|---|---|---|---|---|---|---|
| M3 | 0.5 | 56 | 5.5 | 18 | 3.5 | 2.7×6 | 2.8 |
| M4 | 0.7 | 63 | 7 | 21 | 4.5 | 3.4×6 | 3.7 |
| M5 | 0.8 | 70 | 8 | 25 | 6 | 4.9×8 | 4.65 |
| M6 | 1 | 80 | 10 | 29 | 6 | 4.9×8 | 5.55 |
| M3×0.35 | 0.35 | 56 | 5.5 | 18 | 3.5 | 2.7×6 | 2.85 |
| M4×0.5 | 0.5 | 63 | 7 | 21 | 4.5 | 3.4×6 | 3.8 |
| M5×0.5 | 0.5 | 70 | 8 | 25 | 6 | 4.9×8 | 4.8 |
| M6×0.5 | 0.5 | 80 | 10 | 29 | 6 | 4.9×8 | 5.8 |
| M6×0.75 | 0.75 | 80 | 10 | 29 | 6 | 4.9×8 | 5.7 |
Technical Notes:
- Form tap design displaces material to create threads without producing chips
- Produces stronger threads with improved surface finish compared to cutting taps
- Ideal for ductile materials that can be cold-formed
- HSS-E construction provides heat resistance and durability
- TiCN coating reduces friction and extends tool life
- 6HX hexagonal shank for secure tool holding
- Conforms to DIN dimensional standards
- Max 3xd chamfer
Applications:
Suitable for thread forming in ductile materials including aluminum, copper, brass, mild steel, and other materials with good plasticity. Produces chip-free threading ideal for blind holes and applications where chip contamination must be avoided. Not suitable for brittle materials like cast iron.
