JIS Standard General HSS-E Spiral Flute Tap - M3 to M6x0.75
JIS Standard General HSS-E Spiral Flute Tap - M3 to M6x0.75
JIS Standard General HSS-E Spiral Flute Tap
High-speed steel extra (HSS-E) spiral flute taps manufactured to JIS (Japanese Industrial Standards). Available in both TiCN-coated and uncoated versions. Spiral flute geometry evacuates chips upward during threading operations.
Catalog Reference: ECL TAPS A25
Specifications:
- Material: HSS-E (High-Speed Steel Extra)
- Standard: JIS (Japanese Industrial Standards)
- Type: Spiral Flute
- Coating Options: TiCN or No-coated
- Thread Standard: Metric M (F)
- Point Angle: 60°
- Shank Type: 6H (Hexagonal)
- Helix Angle: 45°
- Chamfer: max 3xd
Available Sizes:
M3, M4, M5, M6, M3x0.35, M4x0.5, M5x0.5, M6x0.5, M6x0.75

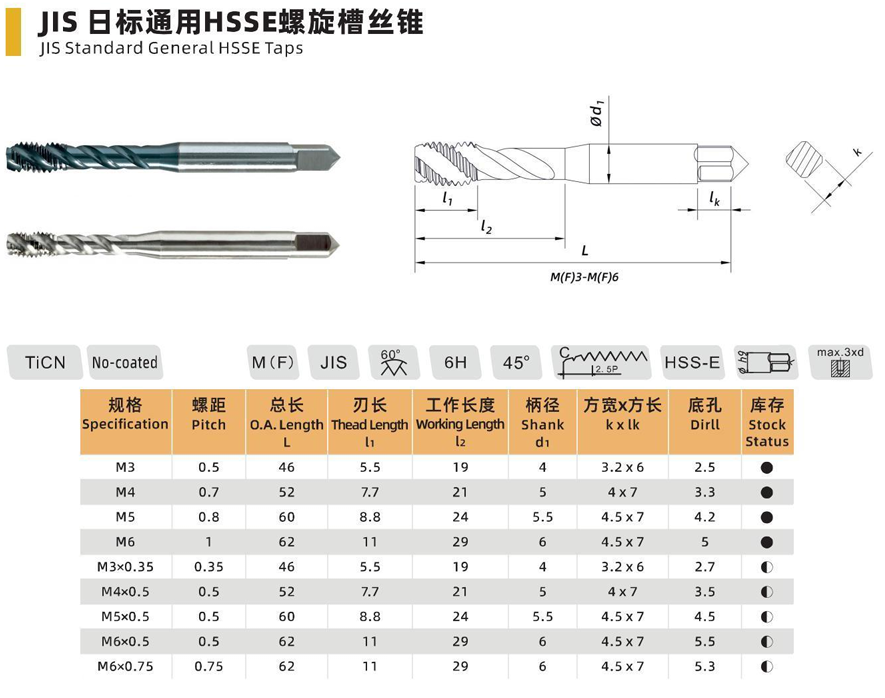

Size Chart:
| Size | Pitch | O.A. Length (L) | Thread Length (l₁) | Working Length (l₂) | Shank ø (d₁) | Square Size (k×lk) | Drill ø |
|---|---|---|---|---|---|---|---|
| M3 | 0.5 | 46 | 5.5 | 19 | 4 | 3.2×6 | 2.5 |
| M4 | 0.7 | 52 | 7.7 | 21 | 5 | 4×7 | 3.3 |
| M5 | 0.8 | 60 | 8.8 | 24 | 5.5 | 4.5×7 | 4.2 |
| M6 | 1 | 62 | 11 | 29 | 6 | 4.5×7 | 5 |
| M3×0.35 | 0.35 | 46 | 5.5 | 19 | 4 | 3.2×6 | 2.7 |
| M4×0.5 | 0.5 | 52 | 7.7 | 21 | 5 | 4×7 | 3.5 |
| M5×0.5 | 0.5 | 60 | 8.8 | 24 | 5.5 | 4.5×7 | 4.5 |
| M6×0.5 | 0.5 | 62 | 11 | 29 | 6 | 4.5×7 | 5.5 |
| M6×0.75 | 0.75 | 62 | 11 | 29 | 6 | 4.5×7 | 5.3 |
Technical Notes:
- 45° helix angle spiral flute design evacuates chips upward, suitable for blind hole applications
- HSS-E construction provides heat resistance and durability
- TiCN coating option reduces friction and extends tool life
- 6H hexagonal shank for secure tool holding
- Conforms to JIS dimensional standards
- Max 3xd chamfer for general purpose applications
Applications:
Suitable for threading operations in steel, stainless steel, cast iron, and non-ferrous metals. Recommended for blind hole threading where upward chip evacuation is required.
