DIN Blind Hole Tap for Titanium Alloy HSS-PM
High-speed steel powder metallurgy (HSS-PM) taps manufactured to DIN standards, specifically designed for threading titanium alloys. TiCN-coated for superior performance and extended tool life. 15° helix angle spiral flute geometry evacuates chips upward during threading operations. Premium grade for demanding titanium applications.
Specifications:
- Material: HSS-PM (High-Speed Steel Powder Metallurgy)
- Standard: DIN (German Institute for Standardization)
- Type: Blind Hole Tap for Titanium Alloy
- Coating: TiCN (Titanium Carbonitride)
- Thread Standard: Metric M
- Point Angle: 60°
- Shank Type: 6HX (Hexagonal)
- Helix Angle: 15°
- Chamfer: max 2xd
Available Sizes:
M2, M2.5, M3, M4, M5, M6, M8, M10, M12
Size Chart:

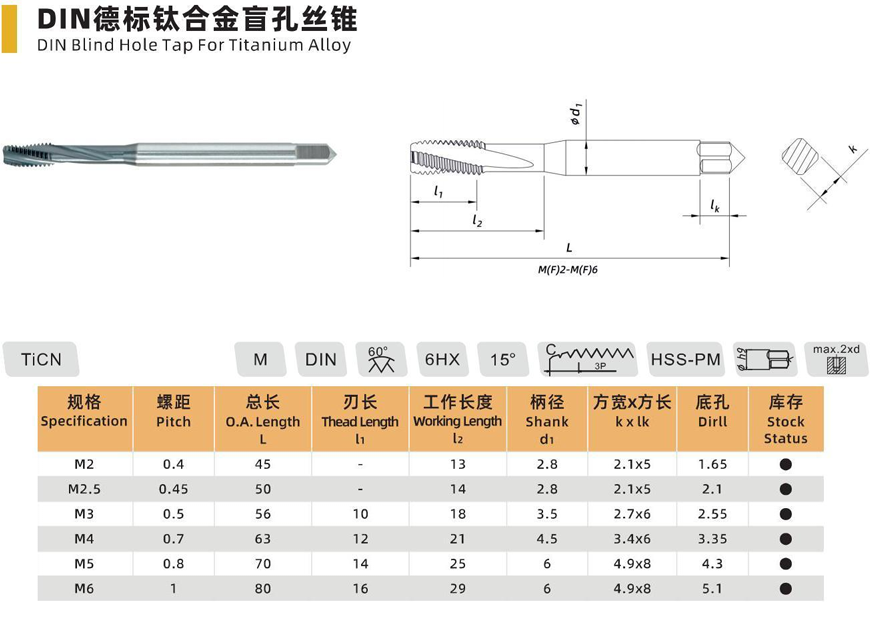

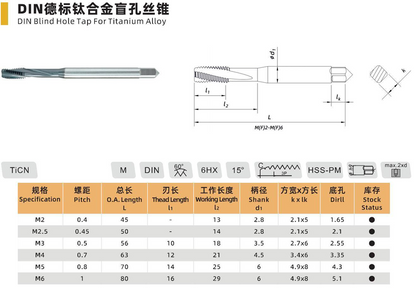

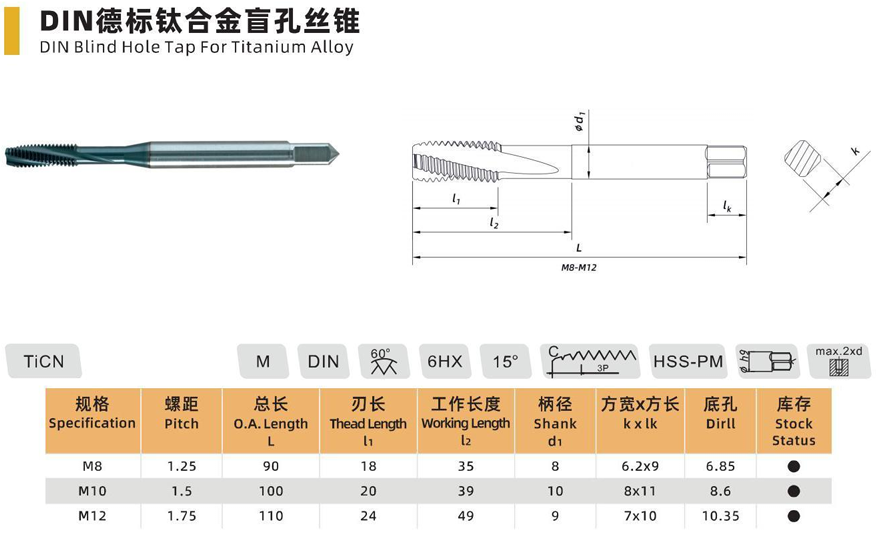

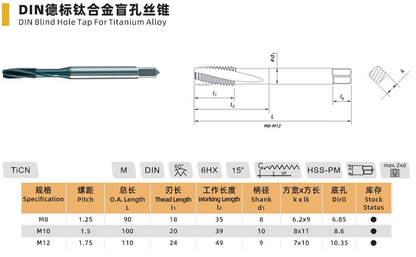

| Size | Pitch | O.A. Length (L) | Thread Length (l₁) | Working Length (l₂) | Shank ø (d₁) | Square Size (k×lk) | Drill ø |
|---|---|---|---|---|---|---|---|
| M2 | 0.4 | 45 | - | 13 | 2.8 | 2.1×5 | 1.65 |
| M2.5 | 0.45 | 50 | - | 14 | 2.8 | 2.1×5 | 2.1 |
| M3 | 0.5 | 56 | 10 | 18 | 3.5 | 2.7×6 | 2.55 |
| M4 | 0.7 | 63 | 12 | 21 | 4.5 | 3.4×6 | 3.35 |
| M5 | 0.8 | 70 | 14 | 25 | 6 | 4.9×8 | 4.3 |
| M6 | 1 | 80 | 16 | 29 | 6 | 4.9×8 | 5.1 |
| M8 | 1.25 | 90 | 18 | 35 | 8 | 6.2×9 | 6.85 |
| M10 | 1.5 | 100 | 20 | 39 | 10 | 8×11 | 8.6 |
| M12 | 1.75 | 110 | 24 | 49 | 9 | 7×10 | 10.35 |
Technical Notes:
- HSS-PM powder metallurgy construction provides superior wear resistance and toughness for titanium machining
- 15° helix angle spiral flute design evacuates chips upward, ideal for blind hole applications in titanium
- TiCN coating reduces friction and significantly extends tool life when threading titanium alloys
- 6HX hexagonal shank for secure tool holding
- Conforms to DIN dimensional standards
- Max 2xd chamfer optimized for titanium threading
- Premium grade specifically engineered for the challenges of titanium alloy threading
Applications:
Specifically designed for threading titanium alloys and other difficult-to-machine aerospace materials. Ideal for blind hole threading in titanium where upward chip evacuation is required. The HSS-PM construction and TiCN coating provide the wear resistance and heat resistance necessary for successful titanium threading. Recommended for aerospace, medical implant, and high-performance applications requiring titanium components.
