DIN Standard High-Performance HSS-PM Spiral Flute Tap - M8 to M48x5

DIN Standard High-Performance HSS-PM Spiral Flute Tap

High-speed steel powder metallurgy (HSS-PM) spiral flute taps manufactured to DIN standards for medium to large metric threading applications. TiCN-coated for superior performance and extended tool life. Spiral flute geometry evacuates chips upward during threading operations. Premium grade for demanding applications.

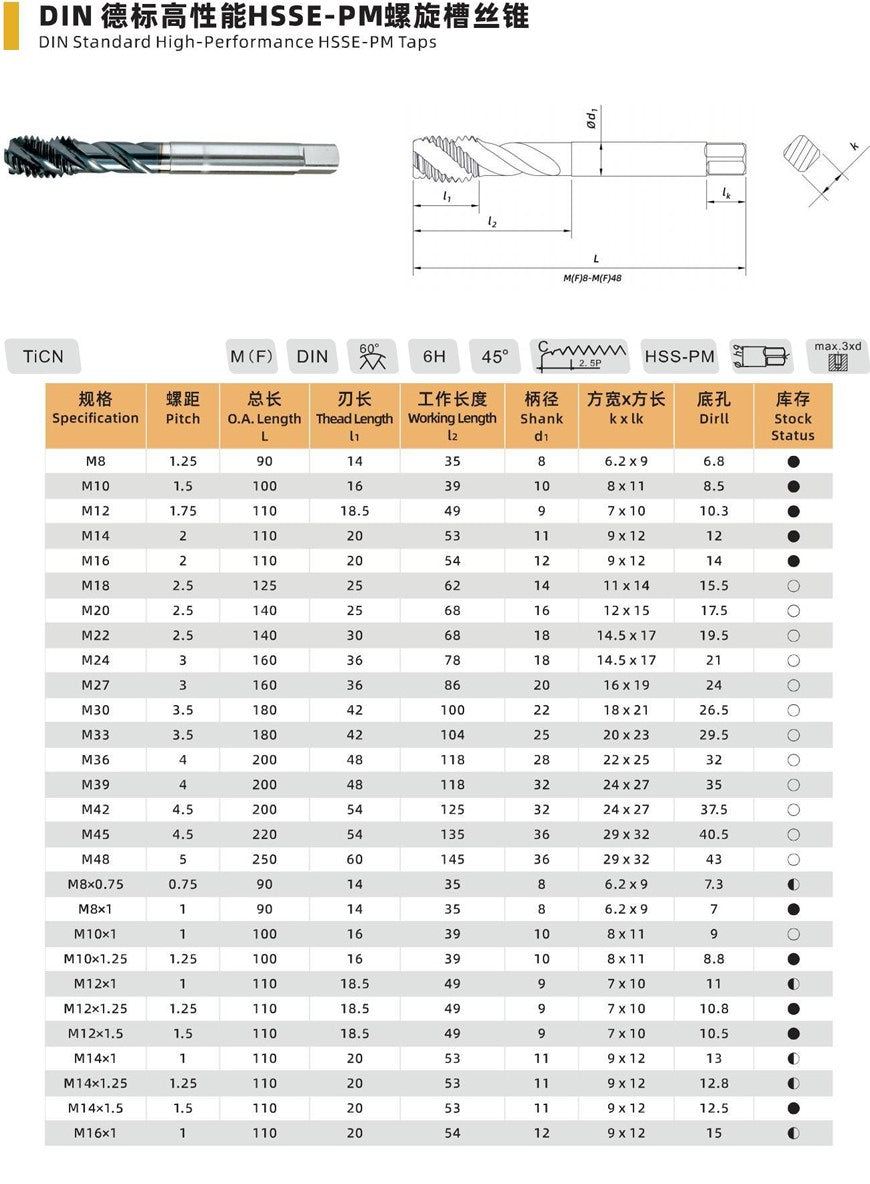

Catalog Reference: ECL TAPS B02

Specifications:

• Material: HSS-PM (High-Speed Steel Powder Metallurgy)
• Standard: DIN (German Institute for Standardization)
• Type: Spiral Flute
• Coating: TiCN (Titanium Carbonitride)
• Thread Standard: Metric M (F)
• Point Angle: 60°
• Shank Type: 6H (Hexagonal)
• Helix Angle: 45°
• Chamfer: max 3xd

Available Sizes:

M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M39, M42, M45, M48, M8x0.75, M8x1, M10x1, M10x1.25, M12x1, M12x1.25, M12x1.5, M14x1, M14x1.25, M14x1.5, M16x1

Technical Notes:

• HSS-PM powder metallurgy construction provides superior wear resistance and toughness
• 45° helix angle spiral flute design evacuates chips upward, suitable for blind hole applications
• TiCN coating reduces friction and significantly extends tool life
• 6H hexagonal shank for secure tool holding
• Conforms to DIN dimensional standards
• Max 3xd chamfer for general purpose applications
• Premium grade for high-performance applications and difficult materials
• Comprehensive range from M8 to M48 standard pitch, plus M8 to M16 fine pitch options

Applications:

Ideal for demanding threading operations in hardened steels, stainless steels, heat-resistant alloys, and other difficult-to-machine materials. Recommended for blind hole threading where upward chip evacuation is required. Superior performance in high-strength materials compared to standard HSS-E taps.
