GB/ISO Standard General HSSE Spiral Point Tap - M3 to M6x0.75

GB/ISO Standard General HSSE Spiral Point Tap

High-speed steel extra (HSS-E) spiral point taps manufactured to GB/ISO standards. Available in both TiCN-coated and uncoated versions. Spiral point geometry directs chips forward during threading operations.

Specifications:

• Material: HSS-E (High-Speed Steel Extra)
• Standard: GB/ISO (Chinese National Standard / International Organization for Standardization)
• Type: Spiral Point (Gun Tap)
• Coating Options: TiCN or No-coated
• Thread Standard: Metric M (F)
• Thread Type: GB/T
• Point Angle: 60°
• Shank Type: 6HX (Hexagonal)
• Chamfer: B (4-5-6-B)

Available Sizes:

M3, M4, M5, M6, M3×0.35, M4×0.5, M5×0.5, M6×0.5, M6×0.75

Size Chart:

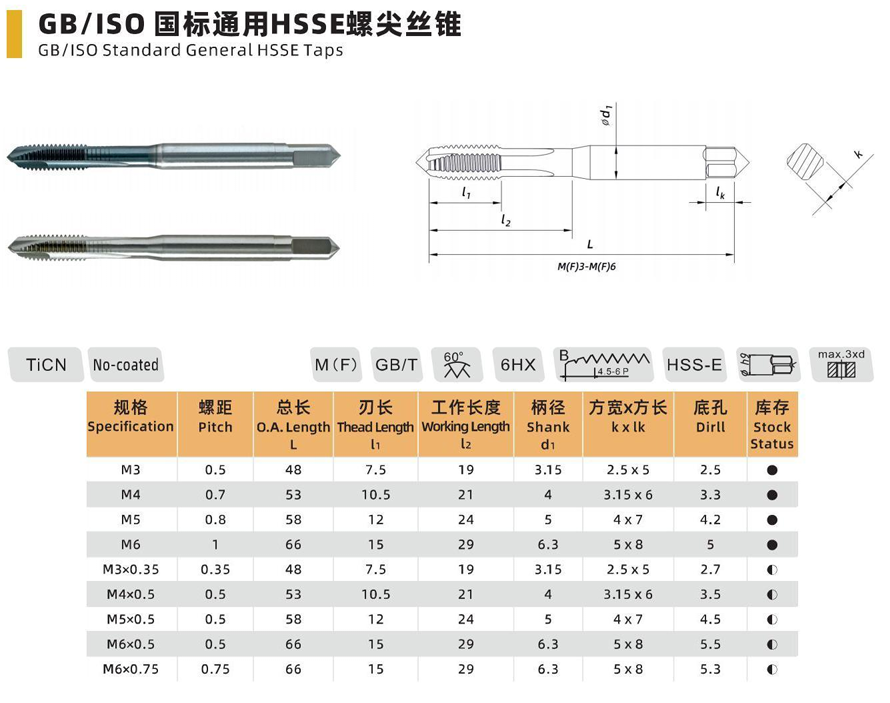

Size	Pitch	O.A. Length (L)	Thread Length (l₁)	Working Length (l₂)	Shank Ø (d₁)	Square Size (k×lk)	Drill Ø
M3	0.5	48	7.5	19	3.15	2.5×5	2.5
M4	0.7	53	10.5	21	4	3.15×6	3.3
M5	0.8	58	12	24	5	4×7	4.2
M6	1	66	15	29	6.3	5×8	5
M3×0.35	0.35	48	7.5	19	3.15	2.5×5	2.7
M4×0.5	0.5	53	10.5	21	4	3.15×6	3.5
M5×0.5	0.5	58	12	24	5	4×7	4.5
M6×0.5	0.5	66	15	29	6.3	5×8	5.5
M6×0.75	0.75	66	15	29	6.3	5×8	5.3

Technical Notes:

• Spiral point design pushes chips ahead of the tap, suitable for through-hole applications
• HSS-E construction provides heat resistance and durability
• TiCN coating option reduces friction and extends tool life
• 6HX hexagonal shank for secure tool holding
• Conforms to GB/ISO dimensional standards
• B chamfer (4-5-6-B) for general purpose threading

Applications:

Suitable for threading operations in steel, stainless steel, cast iron, and non-ferrous metals. Recommended for through-hole threading where forward chip evacuation is required.
