JIS Standard General HSS-E Spiral Point Tap - M8 to M20x2
JIS Standard General HSS-E Spiral Point Tap - M8 to M20x2
JIS Standard General HSS-E Spiral Point Tap
High-speed steel extra (HSS-E) spiral point taps manufactured to JIS (Japanese Industrial Standards) for medium metric threading applications. Available in both TiCN-coated and uncoated versions. Spiral point geometry directs chips forward during threading operations.
Specifications:
- Material: HSS-E (High-Speed Steel Extra)
- Standard: JIS (Japanese Industrial Standards)
- Type: Spiral Point (Gun Tap)
- Coating Options: TiCN or No-coated
- Thread Standard: Metric M (F)
- Point Angle: 60°
- Shank Type: 6HX (Hexagonal)
- Chamfer: max 3xd
Available Sizes:
M8, M10, M12, M14, M16, M18, M20, M8x0.75, M8x1, M10x1, M10x1.25, M12x1, M12x1.25, M12x1.5, M14x1, M14x1.25, M14x1.5, M16x1, M16x1.5, M18x1, M18x1.5, M18x2, M20x1, M20x1.5, M20x2
Size Chart:

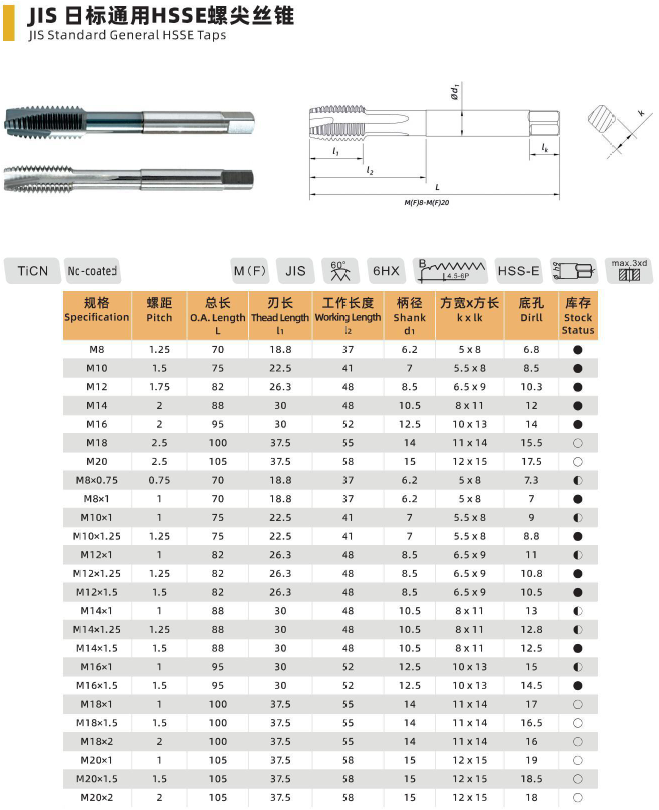

| Size | Pitch | O.A. Length (L) | Thread Length (l₁) | Working Length (l₂) | Shank ø (d₁) | Square Size (k×lk) | Drill ø |
|---|---|---|---|---|---|---|---|
| M8 | 1.25 | 70 | 18.8 | 37 | 6.2 | 5×8 | 6.8 |
| M10 | 1.5 | 75 | 22.5 | 41 | 7 | 5.5×8 | 8.5 |
| M12 | 1.75 | 82 | 26.3 | 48 | 8.5 | 6.5×9 | 10.3 |
| M14 | 2 | 88 | 30 | 48 | 10.5 | 8×11 | 12 |
| M16 | 2 | 95 | 30 | 52 | 12.5 | 10×13 | 14 |
| M18 | 2.5 | 100 | 37.5 | 55 | 14 | 11×14 | 15.5 |
| M20 | 2.5 | 105 | 37.5 | 58 | 15 | 12×15 | 17.5 |
| M8×0.75 | 0.75 | 70 | 18.8 | 37 | 6.2 | 5×8 | 7.3 |
| M8×1 | 1 | 70 | 18.8 | 37 | 6.2 | 5×8 | 7 |
| M10×1 | 1 | 75 | 22.5 | 41 | 7 | 5.5×8 | 9 |
| M10×1.25 | 1.25 | 75 | 22.5 | 41 | 7 | 5.5×8 | 8.8 |
| M12×1 | 1 | 82 | 26.3 | 48 | 8.5 | 6.5×9 | 11 |
| M12×1.25 | 1.25 | 82 | 26.3 | 48 | 8.5 | 6.5×9 | 10.8 |
| M12×1.5 | 1.5 | 82 | 26.3 | 48 | 8.5 | 6.5×9 | 10.5 |
| M14×1 | 1 | 88 | 30 | 48 | 10.5 | 8×11 | 13 |
| M14×1.25 | 1.25 | 88 | 30 | 48 | 10.5 | 8×11 | 12.8 |
| M14×1.5 | 1.5 | 88 | 30 | 48 | 10.5 | 8×11 | 12.5 |
| M16×1 | 1 | 95 | 30 | 52 | 12.5 | 10×13 | 15 |
| M16×1.5 | 1.5 | 95 | 30 | 52 | 12.5 | 10×13 | 14.5 |
| M18×1 | 1 | 100 | 37.5 | 55 | 14 | 11×14 | 17 |
| M18×1.5 | 1.5 | 100 | 37.5 | 55 | 14 | 11×14 | 16.5 |
| M18×2 | 2 | 100 | 37.5 | 55 | 14 | 11×14 | 16 |
| M20×1 | 1 | 105 | 37.5 | 58 | 15 | 12×15 | 19 |
| M20×1.5 | 1.5 | 105 | 37.5 | 58 | 15 | 12×15 | 18.5 |
| M20×2 | 2 | 105 | 37.5 | 58 | 15 | 12×15 | 18 |
Technical Notes:
- Spiral point design pushes chips ahead of the tap, suitable for through-hole applications
- HSS-E construction provides heat resistance and durability
- TiCN coating option reduces friction and extends tool life
- 6HX hexagonal shank for secure tool holding
- Conforms to JIS dimensional standards
- Max 3xd chamfer for general purpose applications
- Comprehensive range includes both standard and fine pitch options
Applications:
Suitable for threading operations in steel, stainless steel, cast iron, and non-ferrous metals. Recommended for through-hole threading where forward chip evacuation is required.
For Technical Information & Trouble Shooting click here
