K11-100 Lathe Chuck

Australian Stock

Specifications:
Jaws material: Hardened Steel
Model: K11-100
Max RPM: 4200 r/min
Jaw: 3 Jaw
Power: Manual

Features:

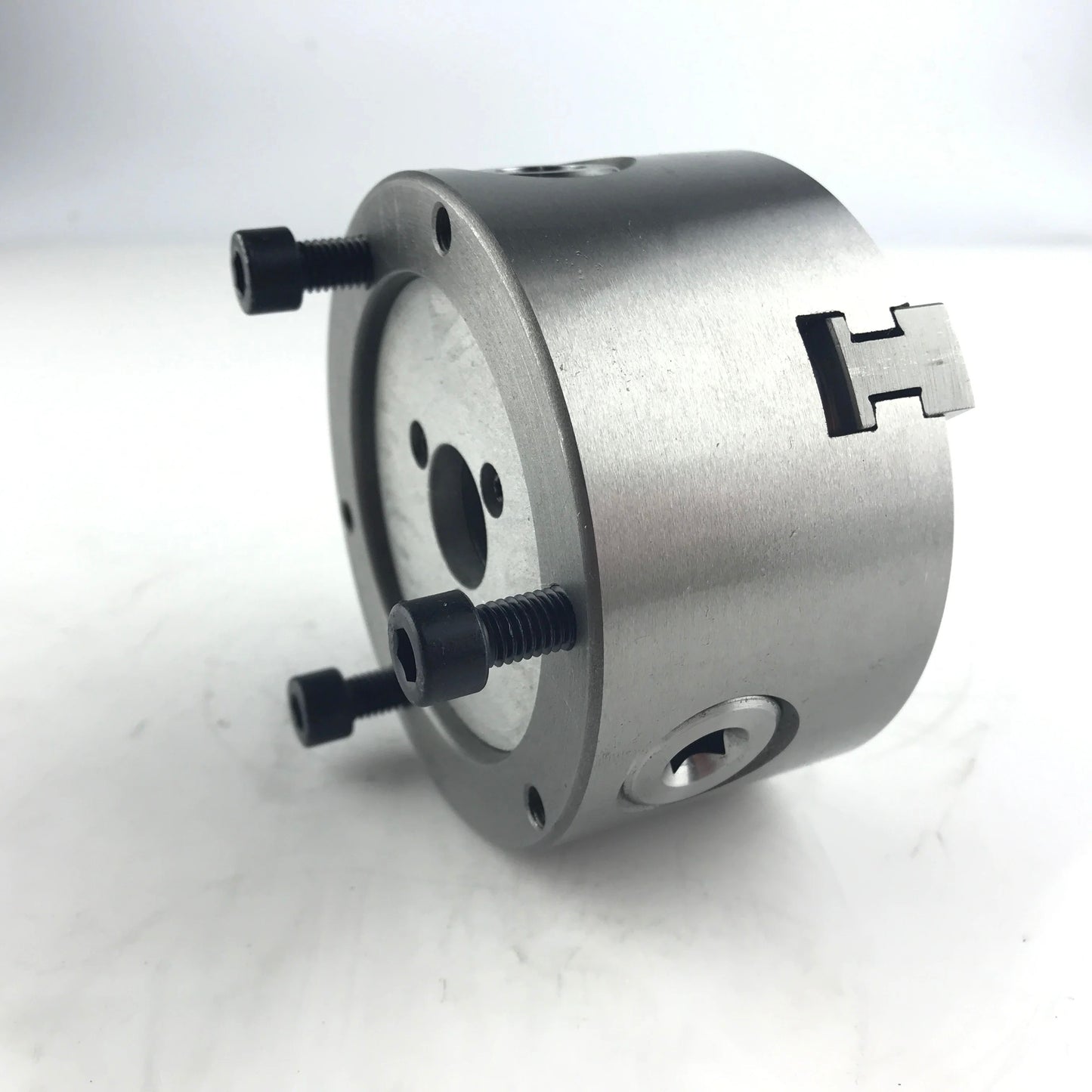

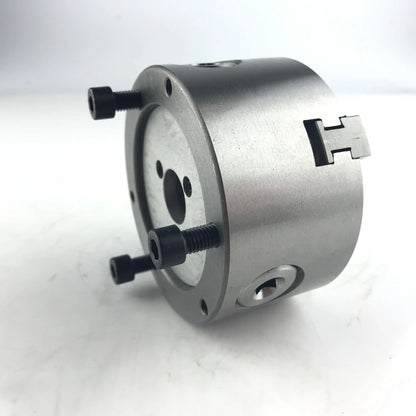

1. Short cylindrical center mounting .
2. Model K11 chucks are provided with one- piece jaws(which include a set of internal jaws and a set of external ones ).
3 .Model K11 chucks are supplied with traditional two-piece jaws.

Internal Jaw:
Clamping Range A-A1: 2- 30mm
Jamming Range B-B1: 30- 90mm
External Jaw
Clamping Range C-C1: 30- 80mm

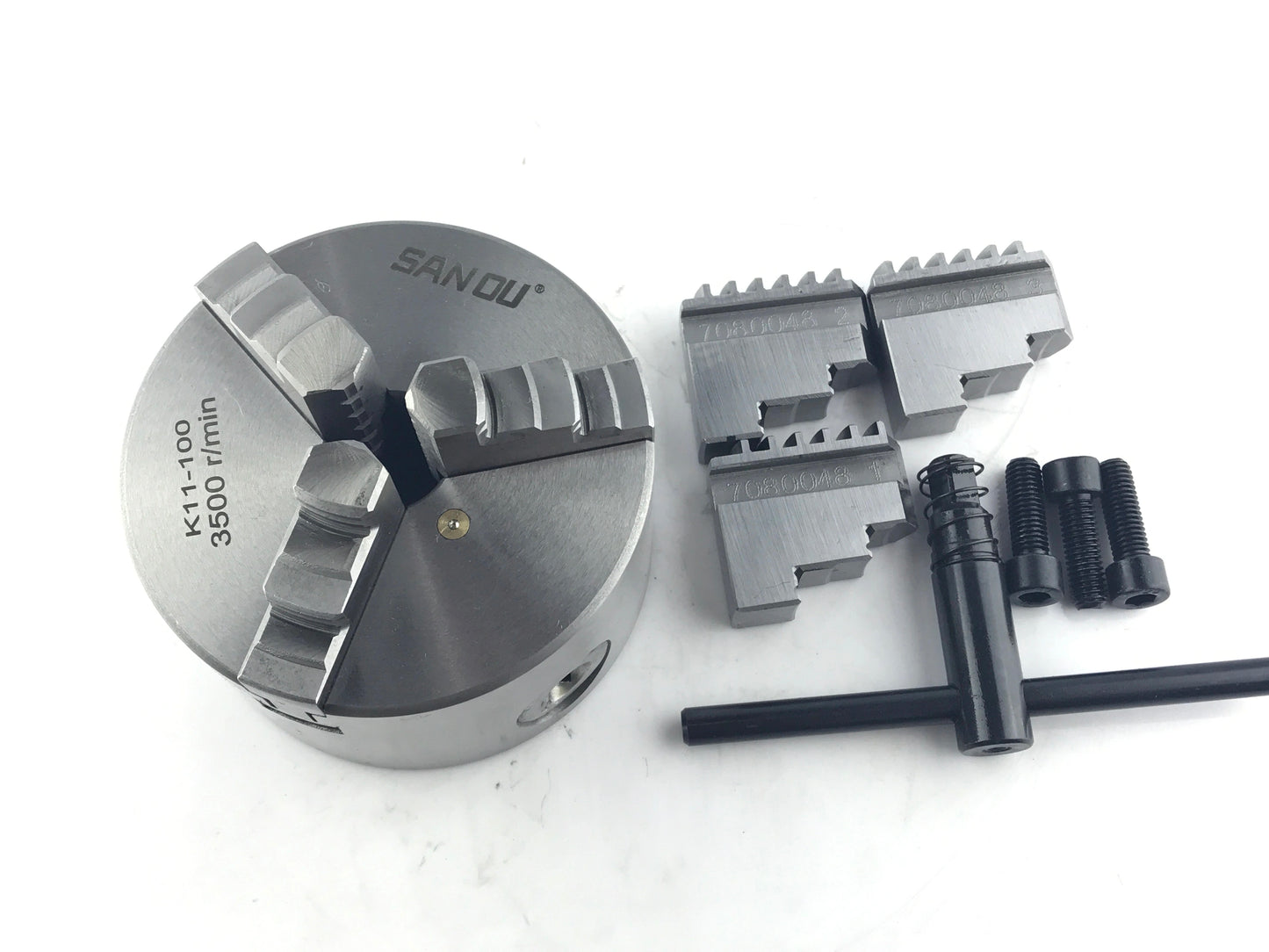

Packaged included :
Self-Centering chuck body x1
Inside jaws x 3
Outside jaws large x 3
Safety chuck key x 1
Mounting bolts x 3
