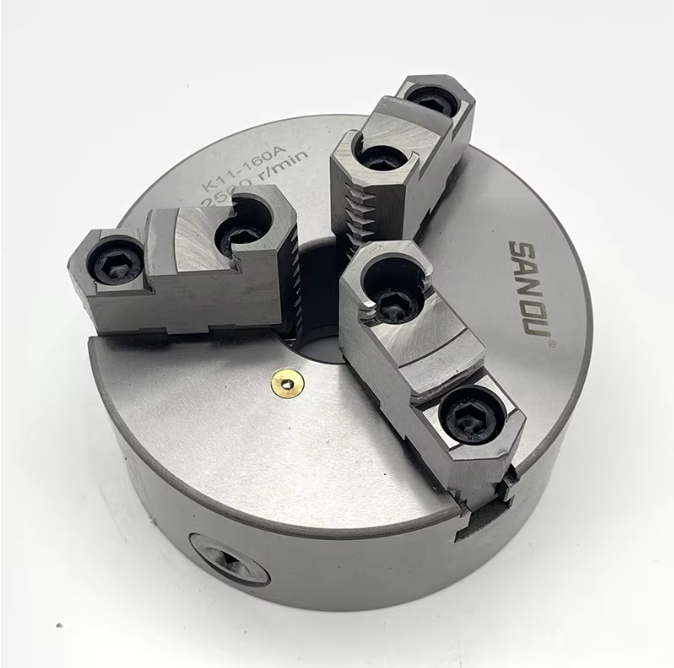

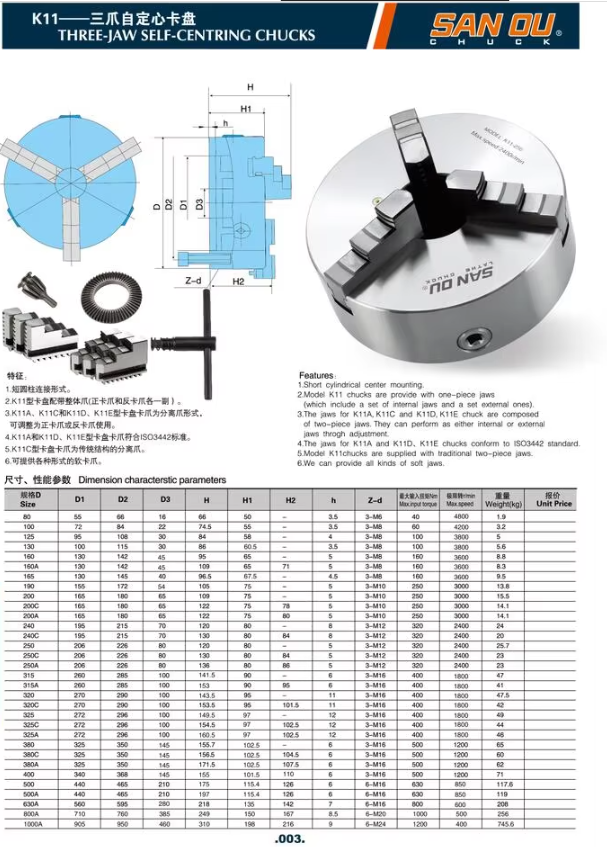

K11-160A Lathe Chuck

1. Short cylindrical center mounting
2. Model K11 chucks are provided with one-piece jaws(which include a set of internal jaws and a set of external ones ).
3. The jaws for K11A, K11C,K11D and K11E chucks are composed of two-piece jaws. They can perform as either internal jaws through adjustment
4. The jaws for K11A and K11D,K11E chucks conform to is 03442 standard.
5 .Model K11 chucks are supplied with traditional two-piece jaws.

Applicable machine tools and accessories:
General lathe, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories etc..

Specifications:
Material: Hardened Steel
Model: K11-160A
RPM: 2500 r/min
Jaw: 3 Jaw
High precision: ≤0.05mm
Application: for CNC Drilling Milling Machine
Color: Silver

Lathe Chuck:
Diameter: 160mm(6.299")
Thickness: 65mm(2.559")
Center Hole: 45mm(1.772")
Bolt Circle Diameter: 142mm(5.591")
Runout: 0.08mm(0.003")

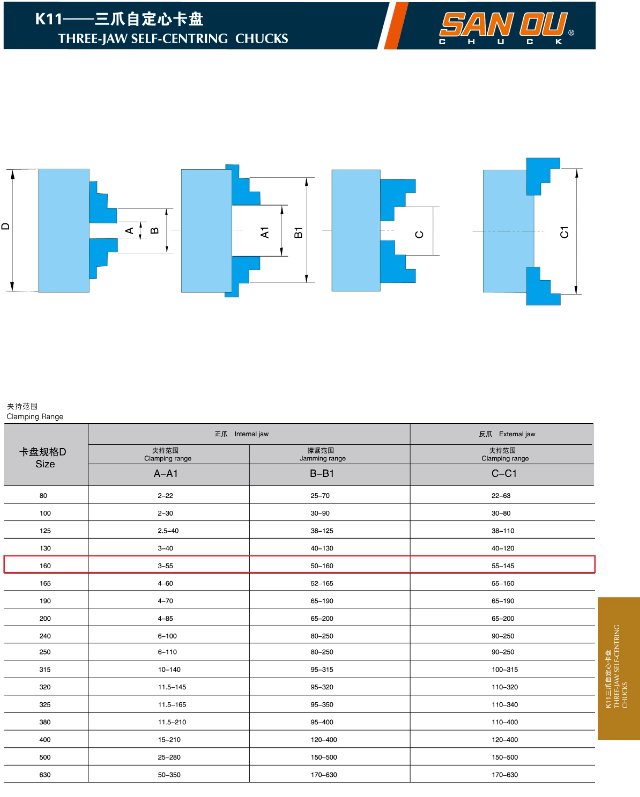

Internal Jaw:
Clamping Range A-A1: 0.118-2.165"(3- 55mm)
Jamming Range B-B1: 1.968-6.299"(50- 160mm)
External Jaw
Clamping Range C-C1: 2.165-5.708"(55- 145mm)

Note:
The jaws for this chuck are composed of two-piece jaws. They can perform as either internal or external jaws through adjustment.

Packaged included:
1 set of two-piece reversible, hard jaws.
1 x Safety chuck key
3 x Mounting bolts
