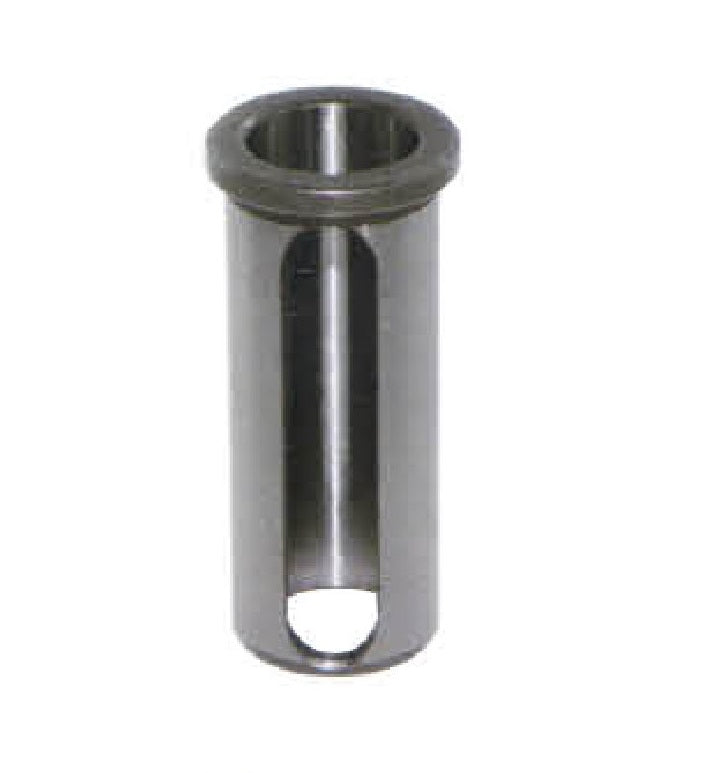

Lathe Tooling Sleeve – YHF 3216G Series Boring Bar/Drill Adapter Ground Finish

This lathe tooling sleeve adapts smaller shank tools—such as boring bars or drills—for use in CNC lathe turrets or tool blocks. Featuring a ground finish and a slotted body for direct clamping, it ensures concentricity and secure retention during turning or drilling operations.

Available in multiple sizes to suit your setup.

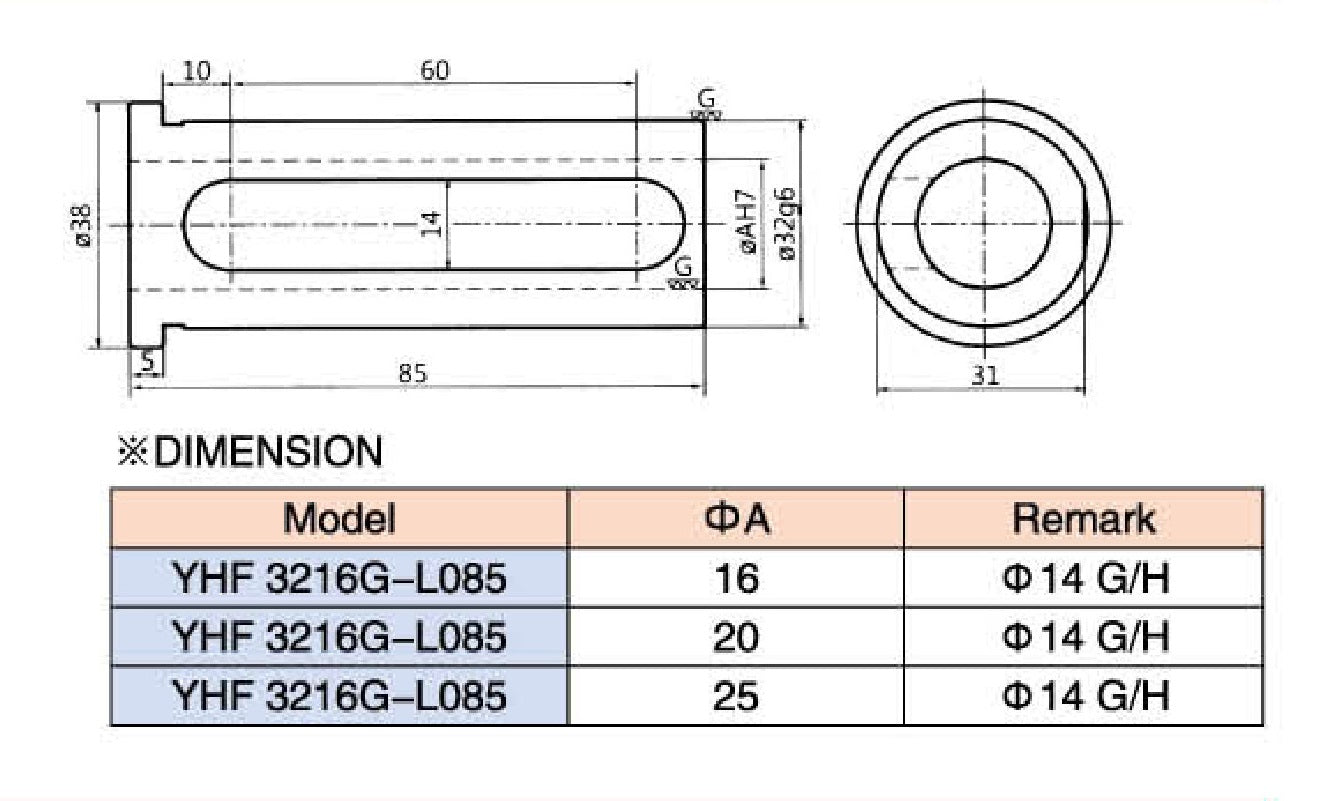

Specs (varies by model):

• Series: YHF 3216G
• Outer Diameter (OD): 32mm
• Inner Diameters (ID): 16mm, 20mm, 25mm
• Finish: Precision ground
• Retention: Slotted body for direct clamping
• Application: Adapts boring bars, drills, or other round shank tools for CNC lathe use

Packaging: Supplied individually
