MTSLONG 10.00mm SOLID CARBIDE ENDMILL U6065

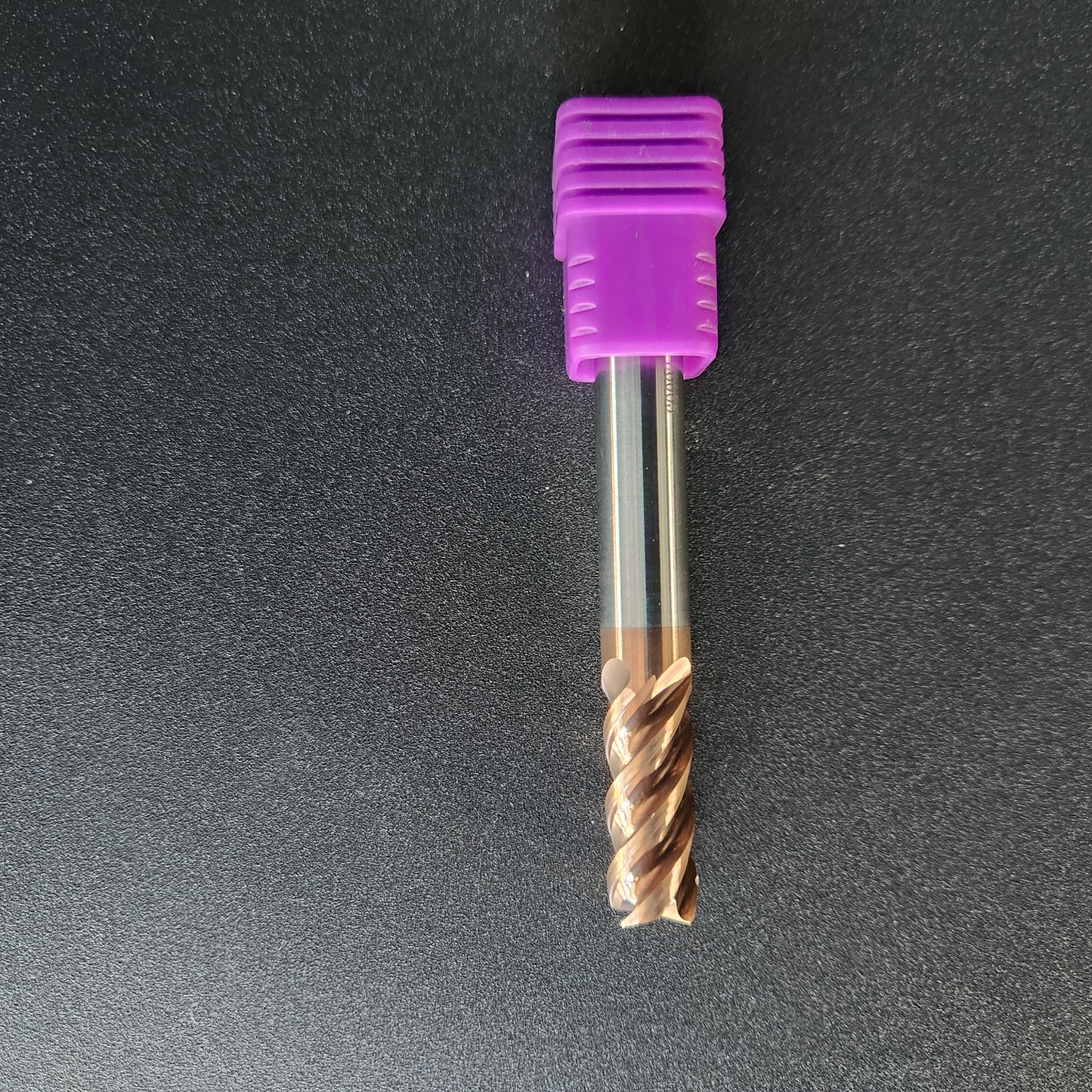

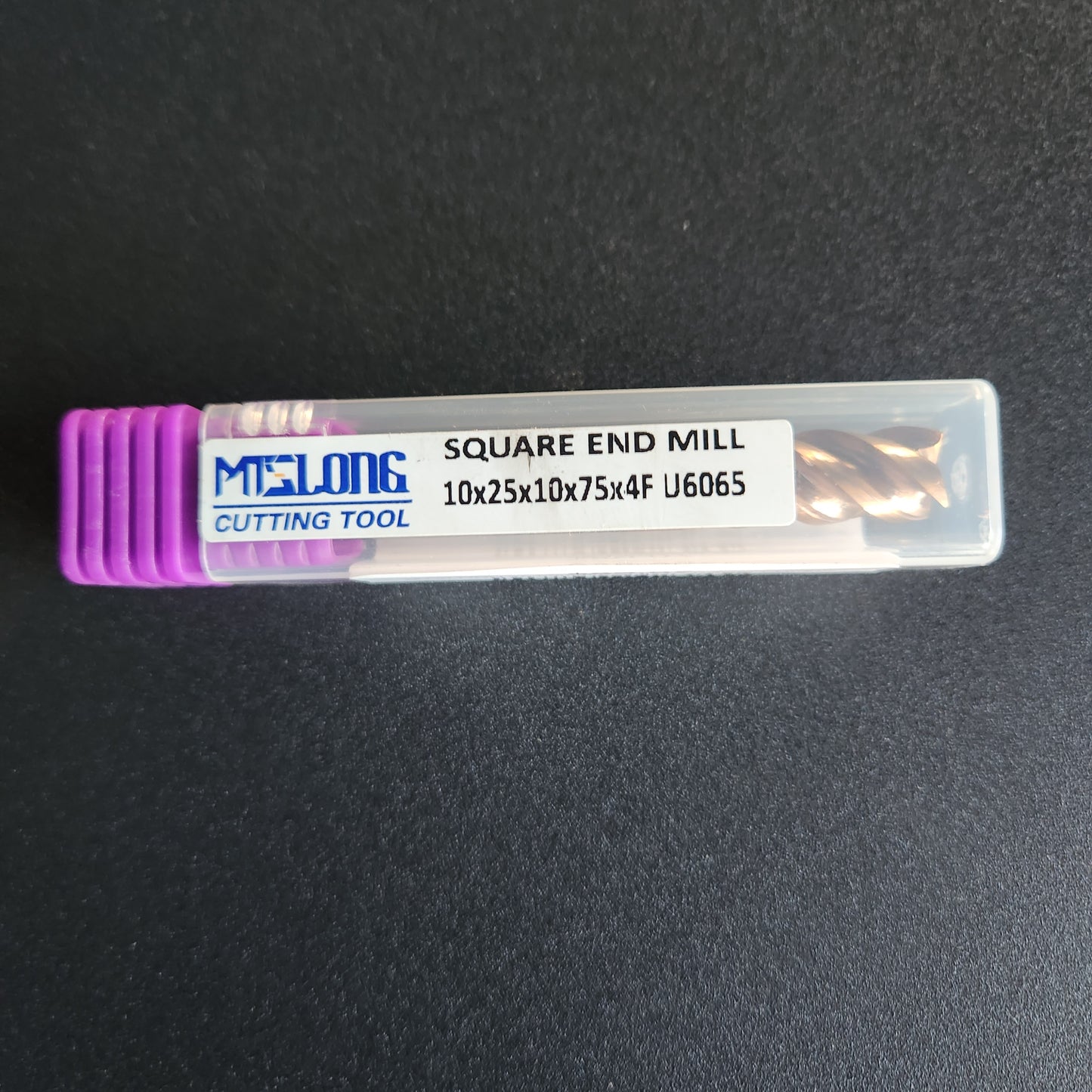

Solid Carbide Endmill — 10.00mm × 4F × U6065 (HRC65, SP Coated)

High-performance 4-flute endmill designed for precision machining of carbon steel, alloy steel, cast iron, and stainless steel. U6065-grade carbide offers excellent wear resistance and stability under high-speed cutting conditions.

Specifications:

• Cutting diameter: 10.00mm
• Flutes: 4
• Overall length: ~75mm
• Shank: 10mm straight
• Material: U6065-grade micrograin carbide (12% cobalt, 0.4μm grain)
• Coating: SP bronze (heat-resistant, low-friction)
• Helix angle: 44°–45°
• Geometry: Unequal spiral pitch for vibration damping

Applications:

• Slotting, profiling, and finishing in steel, stainless, and cast iron
• Suitable for CNC mills and high-speed machining centers
• Best used with coolant or air blast for chip evacuation
