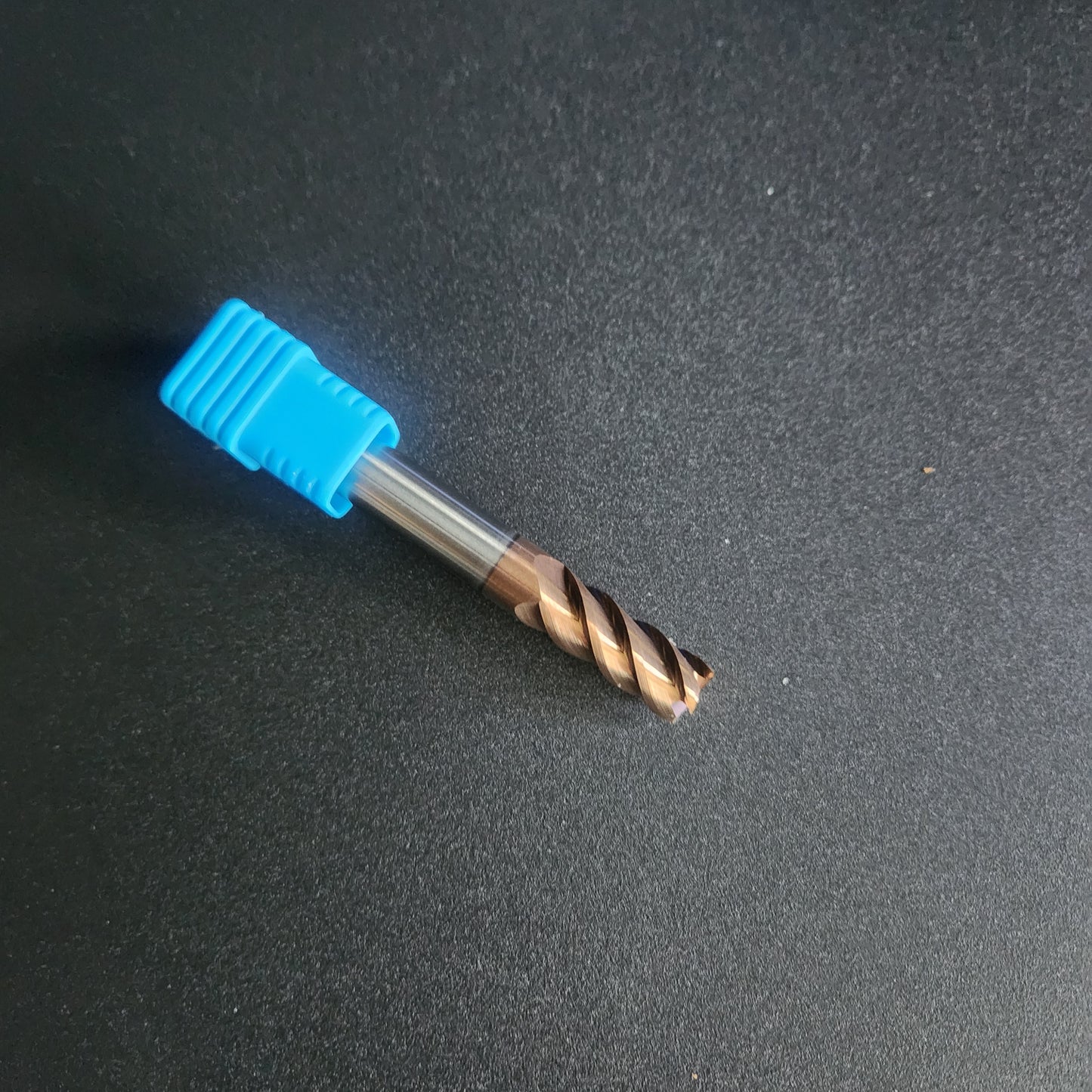

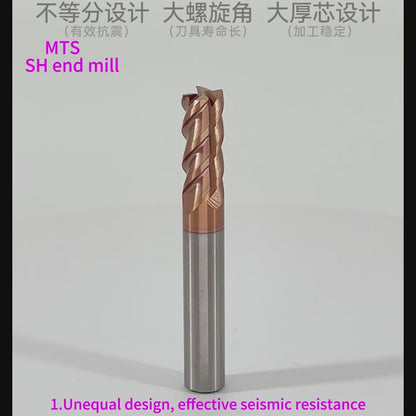

Solid Carbide Endmill — 10×40×10×100×4F SH Series (HRC65, AlTiN+TiSiN Coated)

Solid Carbide Endmill — 10×40×10×100×4F SH Series (HRC65, AlTiN+TiSiN Coated)

Premium 4-flute flat endmill engineered for high-speed machining of hardened steels, tool steels, and superalloys. SH-grade carbide delivers exceptional rigidity and wear resistance, while the dual-layer AlTiN+TiSiN coating ensures thermal stability and extended tool life.

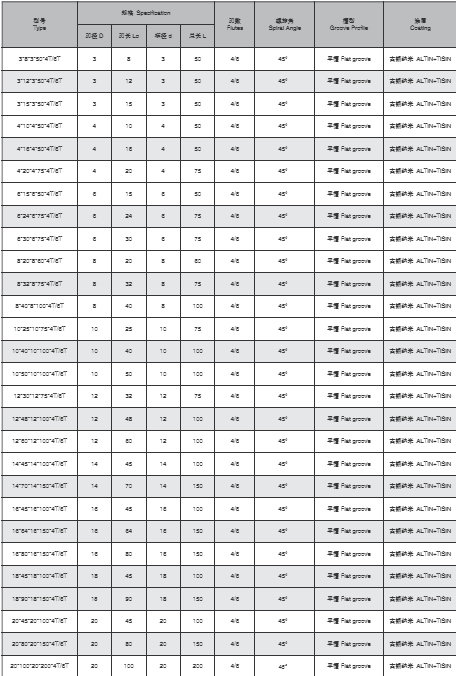

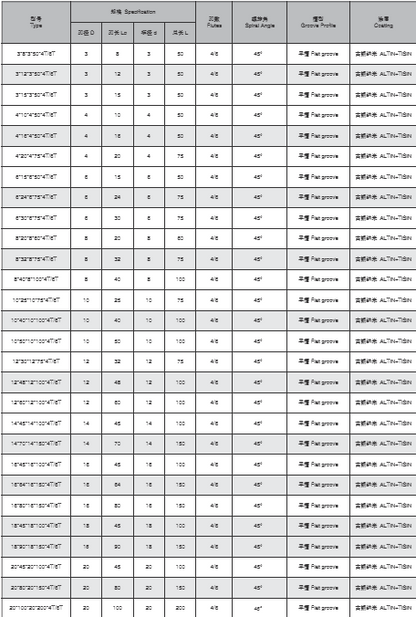

Specifications:

  • Cutting diameter: 10mm
  • Flute length: 40mm
  • Overall length: 100mm
  • Flutes: 4
  • Shank: 10mm straight
  • Material: SH-grade micrograin carbide (9% cobalt, 0.3–0.4μm grain)
  • Coating: AlTiN + TiSiN bronze nano composite
  • Helix angle: 45°
  • Groove style: Flat groove for rigidity
  • Hardness: HRC65

Applications:

  • Ideal for hardened steels, tool steels, and high-temp alloys
  • Suitable for mold and die work, slotting, facing, and ramping
  • Performs best in dry or mist-cooled setups with high-speed CNC mills


Low stock: 5 left

$59.90 AUD
$59.90 AUD
Sale Ordered on request
Taxes included. Shipping calculated at checkout.
View full details
