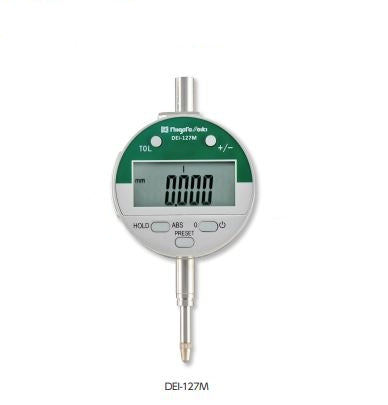

Niigata Seiki DEI Series Dial Indicator
USE
●For measuring displacement such as unevenness of flat
surface, OK / NG for mounting of workpiece, runout of shaft,
and squareness.
MATERIAL
●Stem Stainless steel ●Probe tip： Carbide
FEATURES
●IP65 rating digital indicator, protected against dust and water
●Tolerance mode
●Measuring direction （+/-） switching function
●Pre-set function
●ABS/INC switching function
●Display hold function
●With analogue display （range ±0.025mm in unit of 0.001mm）
●Auto power off function （after 5 min.: sleep mode,
after 8 hrs.: power-off）
●Flat type back and centre-lug back included
POWER
●One CR2032 （lithium） battery included for testing
ACCESSORIES
●Flathead screwdriver （for battery replacement）
●Finger rest （DEI-254M only）
Resolution .001
Error over measuring range DEI-127M .007mm
Error over measuring range DEI-25.4M .008mm
Repeatability DEI-127M .002mm
Repeatability DEI-25.4M .002mm
