Weld Seam Gauge

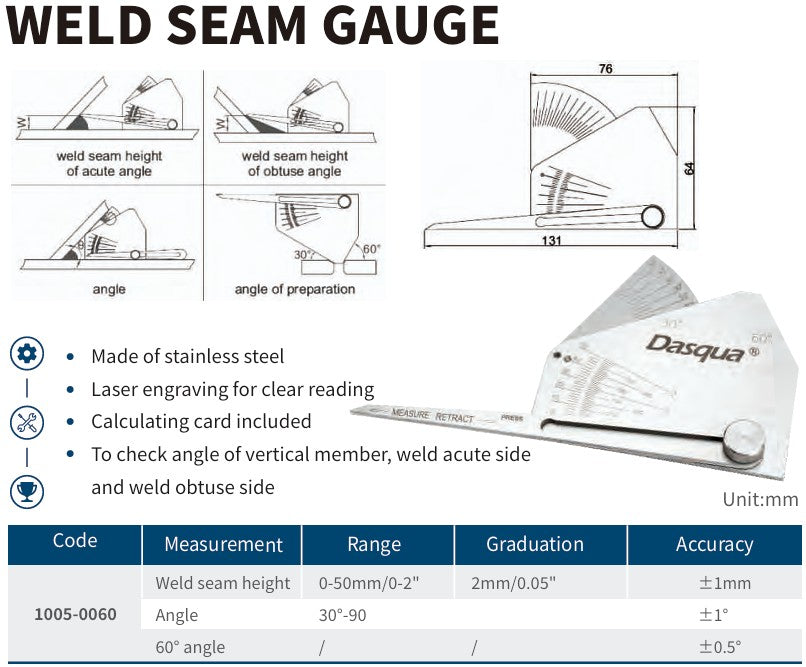

WELD SEAM GAUGE
Material: Stainless steel
Features: Laser engraving, calculating card
Functions:
•     Check angle of vertical member
•     Check weld acute side
•     Check weld obtuse side
•     Check weld seam height
•     Check angle
•     Check angle of preparation (30°, 60°)
Dimensions:
•     Length: 131 mm
•     Height: 64 mm
•     Width (top section): 76 mm
