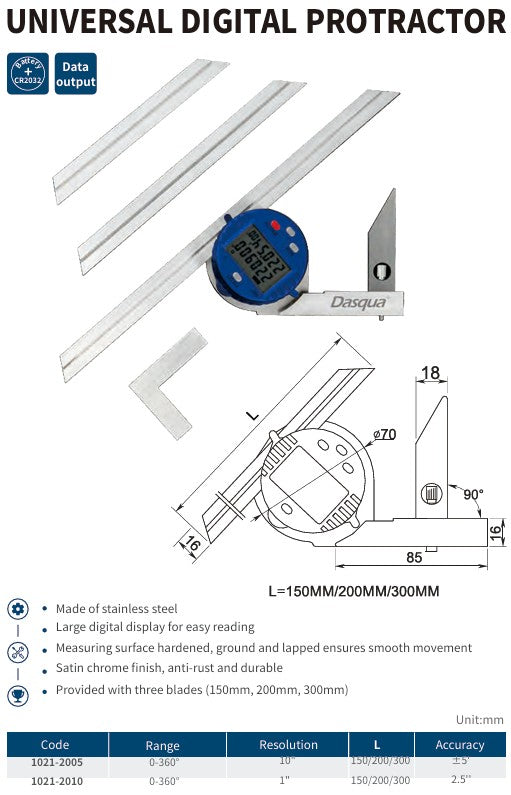

Description A high‑precision universal digital protractor built for accurate angle measurement, inspection, and layout work in machining, fabrication, toolmaking, and engineering environments. The stainless‑steel body provides durability and resistance to wear, while the satin chrome finish ensures clear, low‑glare readability. The hardened, ground, and lapped measuring surfaces allow smooth, repeatable movement, and the large digital display provides clear angle readings. The unit supports data output and runs on a CR2032 battery. Supplied with three interchangeable blades (150 mm, 200 mm, and 300 mm), it offers versatility for a wide range of workshop and inspection tasks.
Specifications • Measuring range: 0–360° • Resolution options: 1/10° or 1′ • Accuracy: ±0.5° or ±2.5′ (model dependent) • Stainless steel construction • Satin chrome finish for anti‑rust durability • Hardened, ground, and lapped measuring surfaces • Large digital display for clear reading • Data output capability • CR2032 battery • Includes 150 mm, 200 mm, and 300 mm blades
