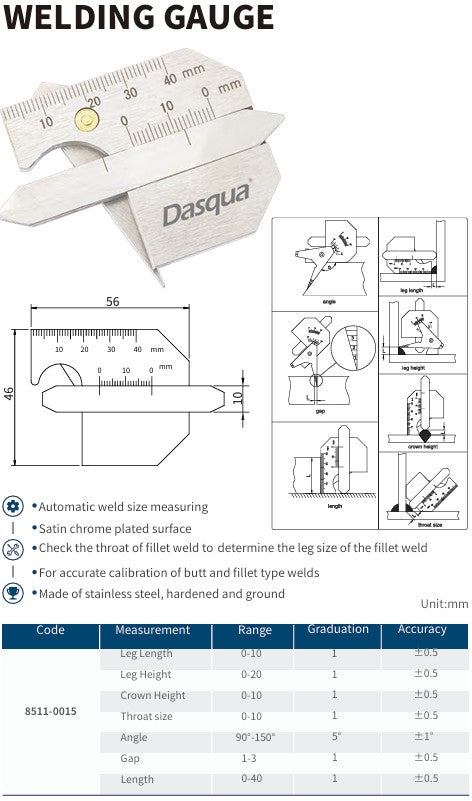

WELDING GAUGE • Automatic weld size measuring • Satin chrome plated surface • Check the throat of fillet weld to determine the leg size of the fillet weld • For accurate calibration of butt and fillet type welds • Made of stainless steel, hardened and ground
Dimensions • Width: 56 mm • Height: 46 mm
Measurement / Range / Graduation / Accuracy: • Leg Length: Range 0–10, Graduation 1, Accuracy ±0.5 • Leg Height: Range 0–20, Graduation 1, Accuracy ±0.5 • Crown Height: Range 0–10, Graduation 1, Accuracy ±0.5 • Throat Size: Range 0–10, Graduation 1, Accuracy ±0.5 • Angle: 90°–150°, Graduation 1°, Accuracy ±1° • Gap: 1–3, Graduation 1, Accuracy ±0.5 • Length: 0–40, Graduation 1, Accuracy ±0.5
